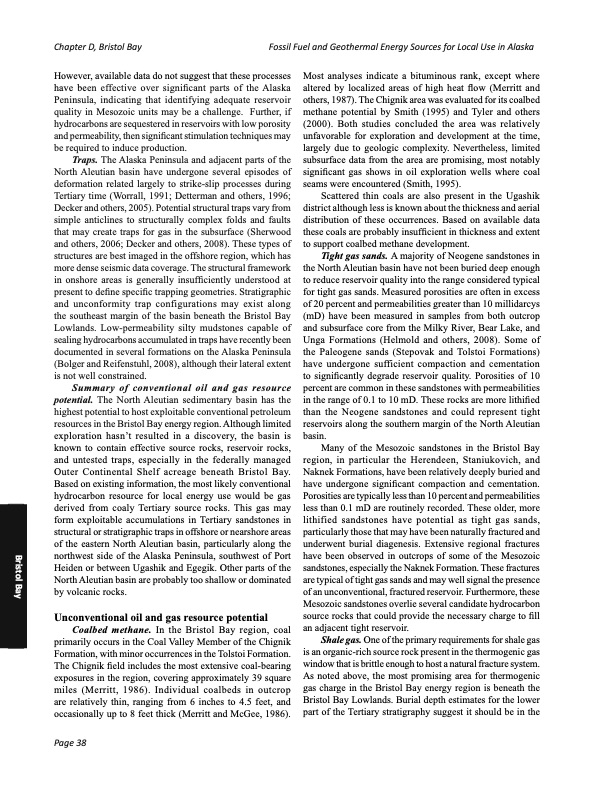

Chapter D, Bristol Bay Fossil Fuel and Geothermal Energy Sources for Local Use in Alaska However, available data do not suggest that these processes have been effective over significant parts of the Alaska Peninsula, indicating that identifying adequate reservoir quality in Mesozoic units may be a challenge. Further, if hydrocarbons are sequestered in reservoirs with low porosity and permeability, then significant stimulation techniques may be required to induce production. Traps. The Alaska Peninsula and adjacent parts of the North Aleutian basin have undergone several episodes of deformation related largely to strike-slip processes during Tertiary time (Worrall, 1991; Detterman and others, 1996; Decker and others, 2005). Potential structural traps vary from simple anticlines to structurally complex folds and faults that may create traps for gas in the subsurface (Sherwood and others, 2006; Decker and others, 2008). These types of structures are best imaged in the offshore region, which has more dense seismic data coverage. The structural framework in onshore areas is generally insufficiently understood at present to define specific trapping geometries. Stratigraphic and unconformity trap configurations may exist along the southeast margin of the basin beneath the Bristol Bay Lowlands. Low-permeability silty mudstones capable of sealing hydrocarbons accumulated in traps have recently been documented in several formations on the Alaska Peninsula (Bolger and Reifenstuhl, 2008), although their lateral extent is not well constrained. Summary of conventional oil and gas resource potential. The North Aleutian sedimentary basin has the highest potential to host exploitable conventional petroleum resources in the Bristol Bay energy region. Although limited exploration hasn’t resulted in a discovery, the basin is known to contain effective source rocks, reservoir rocks, and untested traps, especially in the federally managed Outer Continental Shelf acreage beneath Bristol Bay. Based on existing information, the most likely conventional hydrocarbon resource for local energy use would be gas derived from coaly Tertiary source rocks. This gas may form exploitable accumulations in Tertiary sandstones in structural or stratigraphic traps in offshore or nearshore areas of the eastern North Aleutian basin, particularly along the northwest side of the Alaska Peninsula, southwest of Port Heiden or between Ugashik and Egegik. Other parts of the North Aleutian basin are probably too shallow or dominated by volcanic rocks. Unconventional oil and gas resource potential Coalbed methane. In the Bristol Bay region, coal primarily occurs in the Coal Valley Member of the Chignik Formation, with minor occurrences in the Tolstoi Formation. The Chignik field includes the most extensive coal-bearing exposures in the region, covering approximately 39 square miles (Merritt, 1986). Individual coalbeds in outcrop are relatively thin, ranging from 6 inches to 4.5 feet, and occasionally up to 8 feet thick (Merritt and McGee, 1986). Most analyses indicate a bituminous rank, except where altered by localized areas of high heat flow (Merritt and others, 1987). The Chignik area was evaluated for its coalbed methane potential by Smith (1995) and Tyler and others (2000). Both studies concluded the area was relatively unfavorable for exploration and development at the time, largely due to geologic complexity. Nevertheless, limited subsurface data from the area are promising, most notably significant gas shows in oil exploration wells where coal seams were encountered (Smith, 1995). Scattered thin coals are also present in the Ugashik district although less is known about the thickness and aerial distribution of these occurrences. Based on available data these coals are probably insufficient in thickness and extent to support coalbed methane development. Tight gas sands. A majority of Neogene sandstones in the North Aleutian basin have not been buried deep enough to reduce reservoir quality into the range considered typical for tight gas sands. Measured porosities are often in excess of 20 percent and permeabilities greater than 10 millidarcys (mD) have been measured in samples from both outcrop and subsurface core from the Milky River, Bear Lake, and Unga Formations (Helmold and others, 2008). Some of the Paleogene sands (Stepovak and Tolstoi Formations) have undergone sufficient compaction and cementation to significantly degrade reservoir quality. Porosities of 10 percent are common in these sandstones with permeabilities in the range of 0.1 to 10 mD. These rocks are more lithified than the Neogene sandstones and could represent tight reservoirs along the southern margin of the North Aleutian basin. Many of the Mesozoic sandstones in the Bristol Bay region, in particular the Herendeen, Staniukovich, and Naknek Formations, have been relatively deeply buried and have undergone significant compaction and cementation. Porosities are typically less than 10 percent and permeabilities less than 0.1 mD are routinely recorded. These older, more lithified sandstones have potential as tight gas sands, particularly those that may have been naturally fractured and underwent burial diagenesis. Extensive regional fractures have been observed in outcrops of some of the Mesozoic sandstones, especially the Naknek Formation. These fractures are typical of tight gas sands and may well signal the presence of an unconventional, fractured reservoir. Furthermore, these Mesozoic sandstones overlie several candidate hydrocarbon source rocks that could provide the necessary charge to fill an adjacent tight reservoir. Shale gas. One of the primary requirements for shale gas is an organic-rich source rock present in the thermogenic gas window that is brittle enough to host a natural fracture system. As noted above, the most promising area for thermogenic gas charge in the Bristol Bay energy region is beneath the Bristol Bay Lowlands. Burial depth estimates for the lower part of the Tertiary stratigraphy suggest it should be in the Bristol Bay Page 38PDF Image | FOSSIL FUEL AND GEOTHERMAL ENERGY SOURCES FOR LOCAL USE
