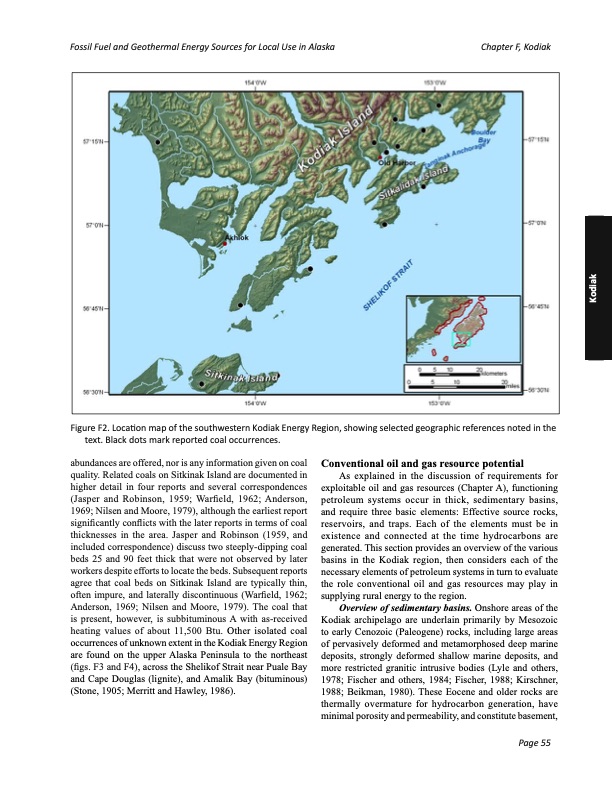

Fossil Fuel and Geothermal Energy Sources for Local Use in Alaska Chapter F, Kodiak Figure F2. Location map of the southwestern Kodiak Energy Region, showing selected geographic references noted in the text. Black dots mark reported coal occurrences. abundances are offered, nor is any information given on coal quality. Related coals on Sitkinak Island are documented in higher detail in four reports and several correspondences (Jasper and Robinson, 1959; Warfield, 1962; Anderson, 1969; Nilsen and Moore, 1979), although the earliest report significantly conflicts with the later reports in terms of coal thicknesses in the area. Jasper and Robinson (1959, and included correspondence) discuss two steeply-dipping coal beds 25 and 90 feet thick that were not observed by later workers despite efforts to locate the beds. Subsequent reports agree that coal beds on Sitkinak Island are typically thin, often impure, and laterally discontinuous (Warfield, 1962; Anderson, 1969; Nilsen and Moore, 1979). The coal that is present, however, is subbituminous A with as-received heating values of about 11,500 Btu. Other isolated coal occurrences of unknown extent in the Kodiak Energy Region are found on the upper Alaska Peninsula to the northeast (figs. F3 and F4), across the Shelikof Strait near Puale Bay and Cape Douglas (lignite), and Amalik Bay (bituminous) (Stone, 1905; Merritt and Hawley, 1986). Conventional oil and gas resource potential As explained in the discussion of requirements for exploitable oil and gas resources (Chapter A), functioning petroleum systems occur in thick, sedimentary basins, and require three basic elements: Effective source rocks, reservoirs, and traps. Each of the elements must be in existence and connected at the time hydrocarbons are generated. This section provides an overview of the various basins in the Kodiak region, then considers each of the necessary elements of petroleum systems in turn to evaluate the role conventional oil and gas resources may play in supplying rural energy to the region. Overview of sedimentary basins. Onshore areas of the Kodiak archipelago are underlain primarily by Mesozoic to early Cenozoic (Paleogene) rocks, including large areas of pervasively deformed and metamorphosed deep marine deposits, strongly deformed shallow marine deposits, and more restricted granitic intrusive bodies (Lyle and others, 1978; Fischer and others, 1984; Fischer, 1988; Kirschner, 1988; Beikman, 1980). These Eocene and older rocks are thermally overmature for hydrocarbon generation, have minimal porosity and permeability, and constitute basement, Page 55 KodiakPDF Image | FOSSIL FUEL AND GEOTHERMAL ENERGY SOURCES FOR LOCAL USE
