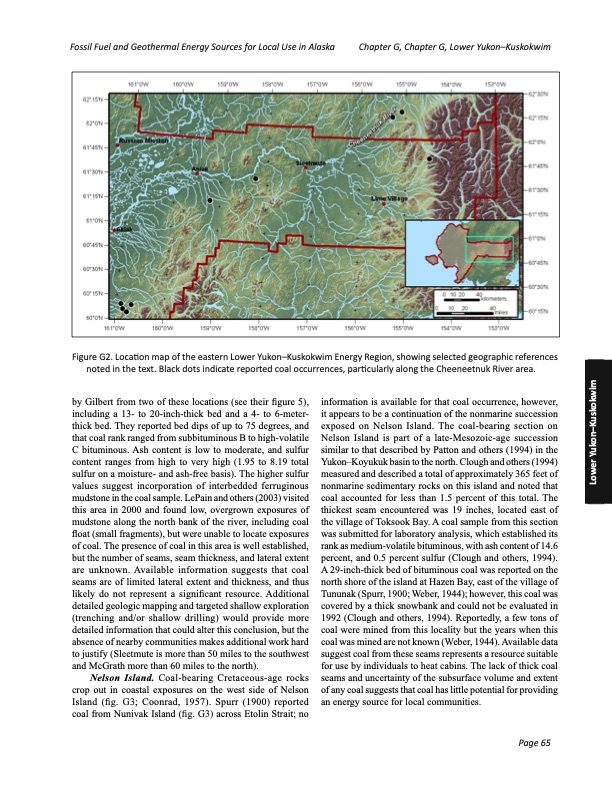

Fossil Fuel and Geothermal Energy Sources for Local Use in Alaska Chapter G, Chapter G, Lower Yukon–Kuskokwim Figure G2. Location map of the eastern Lower Yukon–Kuskokwim Energy Region, showing selected geographic references noted in the text. Black dots indicate reported coal occurrences, particularly along the Cheeneetnuk River area. by Gilbert from two of these locations (see their figure 5), including a 13- to 20-inch-thick bed and a 4- to 6-meter- thick bed. They reported bed dips of up to 75 degrees, and that coal rank ranged from subbituminous B to high-volatile C bituminous. Ash content is low to moderate, and sulfur content ranges from high to very high (1.95 to 8.19 total sulfur on a moisture- and ash-free basis). The higher sulfur values suggest incorporation of interbedded ferruginous mudstone in the coal sample. LePain and others (2003) visited this area in 2000 and found low, overgrown exposures of mudstone along the north bank of the river, including coal float (small fragments), but were unable to locate exposures of coal. The presence of coal in this area is well established, but the number of seams, seam thickness, and lateral extent are unknown. Available information suggests that coal seams are of limited lateral extent and thickness, and thus likely do not represent a significant resource. Additional detailed geologic mapping and targeted shallow exploration (trenching and/or shallow drilling) would provide more detailed information that could alter this conclusion, but the absence of nearby communities makes additional work hard to justify (Sleetmute is more than 50 miles to the southwest and McGrath more than 60 miles to the north). Nelson Island. Coal-bearing Cretaceous-age rocks crop out in coastal exposures on the west side of Nelson Island (fig. G3; Coonrad, 1957). Spurr (1900) reported coal from Nunivak Island (fig. G3) across Etolin Strait; no information is available for that coal occurrence, however, it appears to be a continuation of the nonmarine succession exposed on Nelson Island. The coal-bearing section on Nelson Island is part of a late-Mesozoic-age succession similar to that described by Patton and others (1994) in the Yukon–Koyukuk basin to the north. Clough and others (1994) measured and described a total of approximately 365 feet of nonmarine sedimentary rocks on this island and noted that coal accounted for less than 1.5 percent of this total. The thickest seam encountered was 19 inches, located east of the village of Toksook Bay. A coal sample from this section was submitted for laboratory analysis, which established its rank as medium-volatile bituminous, with ash content of 14.6 percent, and 0.5 percent sulfur (Clough and others, 1994). A 29-inch-thick bed of bituminous coal was reported on the north shore of the island at Hazen Bay, east of the village of Tununak (Spurr, 1900; Weber, 1944); however, this coal was covered by a thick snowbank and could not be evaluated in 1992 (Clough and others, 1994). Reportedly, a few tons of coal were mined from this locality but the years when this coal was mined are not known (Weber, 1944). Available data suggest coal from these seams represents a resource suitable for use by individuals to heat cabins. The lack of thick coal seams and uncertainty of the subsurface volume and extent of any coal suggests that coal has little potential for providing an energy source for local communities. Page 65 Lower Yukon–KuskokwimPDF Image | FOSSIL FUEL AND GEOTHERMAL ENERGY SOURCES FOR LOCAL USE
