PDF Publication Title:
Text from PDF Page: 115

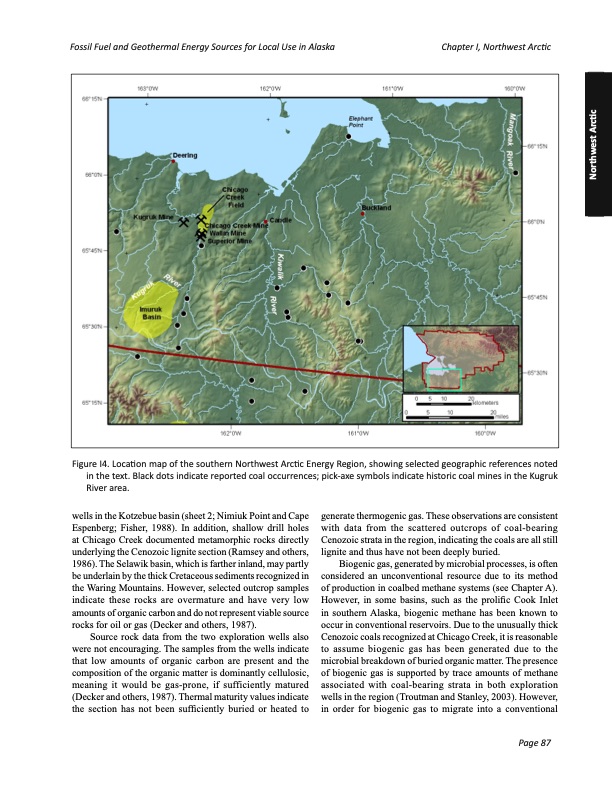

Fossil Fuel and Geothermal Energy Sources for Local Use in Alaska Chapter I, Northwest Arctic Figure I4. Location map of the southern Northwest Arctic Energy Region, showing selected geographic references noted in the text. Black dots indicate reported coal occurrences; pick-axe symbols indicate historic coal mines in the Kugruk River area. wells in the Kotzebue basin (sheet 2; Nimiuk Point and Cape Espenberg; Fisher, 1988). In addition, shallow drill holes at Chicago Creek documented metamorphic rocks directly underlying the Cenozoic lignite section (Ramsey and others, 1986). The Selawik basin, which is farther inland, may partly be underlain by the thick Cretaceous sediments recognized in the Waring Mountains. However, selected outcrop samples indicate these rocks are overmature and have very low amounts of organic carbon and do not represent viable source rocks for oil or gas (Decker and others, 1987). Source rock data from the two exploration wells also were not encouraging. The samples from the wells indicate that low amounts of organic carbon are present and the composition of the organic matter is dominantly cellulosic, meaning it would be gas-prone, if sufficiently matured (Decker and others, 1987). Thermal maturity values indicate the section has not been sufficiently buried or heated to generate thermogenic gas. These observations are consistent with data from the scattered outcrops of coal-bearing Cenozoic strata in the region, indicating the coals are all still lignite and thus have not been deeply buried. Biogenic gas, generated by microbial processes, is often considered an unconventional resource due to its method of production in coalbed methane systems (see Chapter A). However, in some basins, such as the prolific Cook Inlet in southern Alaska, biogenic methane has been known to occur in conventional reservoirs. Due to the unusually thick Cenozoic coals recognized at Chicago Creek, it is reasonable to assume biogenic gas has been generated due to the microbial breakdown of buried organic matter. The presence of biogenic gas is supported by trace amounts of methane associated with coal-bearing strata in both exploration wells in the region (Troutman and Stanley, 2003). However, in order for biogenic gas to migrate into a conventional Page 87 Northwest ArcticPDF Image | FOSSIL FUEL AND GEOTHERMAL ENERGY SOURCES FOR LOCAL USE
