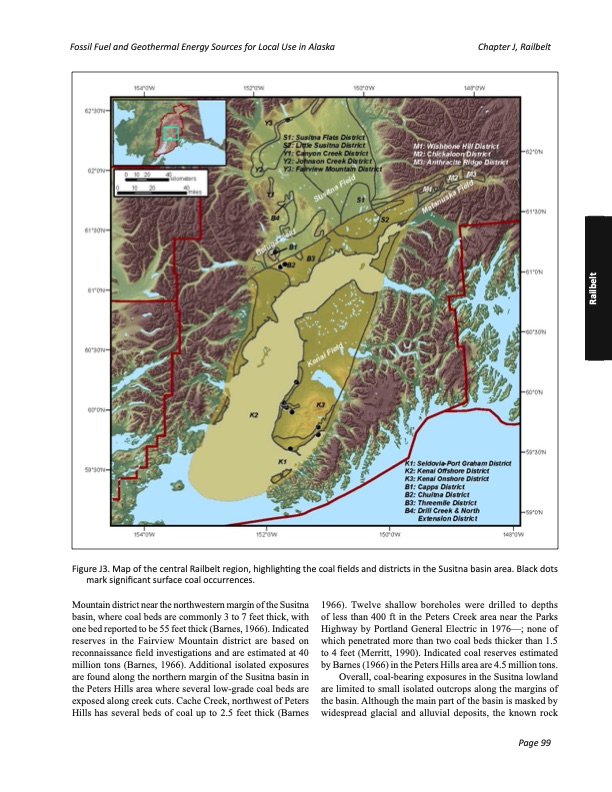

Fossil Fuel and Geothermal Energy Sources for Local Use in Alaska Chapter J, Railbelt Figure J3. Map of the central Railbelt region, highlighting the coal fields and districts in the Susitna basin area. Black dots mark significant surface coal occurrences. Mountain district near the northwestern margin of the Susitna basin, where coal beds are commonly 3 to 7 feet thick, with one bed reported to be 55 feet thick (Barnes, 1966). Indicated reserves in the Fairview Mountain district are based on reconnaissance field investigations and are estimated at 40 million tons (Barnes, 1966). Additional isolated exposures are found along the northern margin of the Susitna basin in the Peters Hills area where several low-grade coal beds are exposed along creek cuts. Cache Creek, northwest of Peters Hills has several beds of coal up to 2.5 feet thick (Barnes 1966). Twelve shallow boreholes were drilled to depths of less than 400 ft in the Peters Creek area near the Parks Highway by Portland General Electric in 1976—; none of which penetrated more than two coal beds thicker than 1.5 to 4 feet (Merritt, 1990). Indicated coal reserves estimated by Barnes (1966) in the Peters Hills area are 4.5 million tons. Overall, coal-bearing exposures in the Susitna lowland are limited to small isolated outcrops along the margins of the basin. Although the main part of the basin is masked by widespread glacial and alluvial deposits, the known rock Page 99 RailbeltPDF Image | FOSSIL FUEL AND GEOTHERMAL ENERGY SOURCES FOR LOCAL USE
