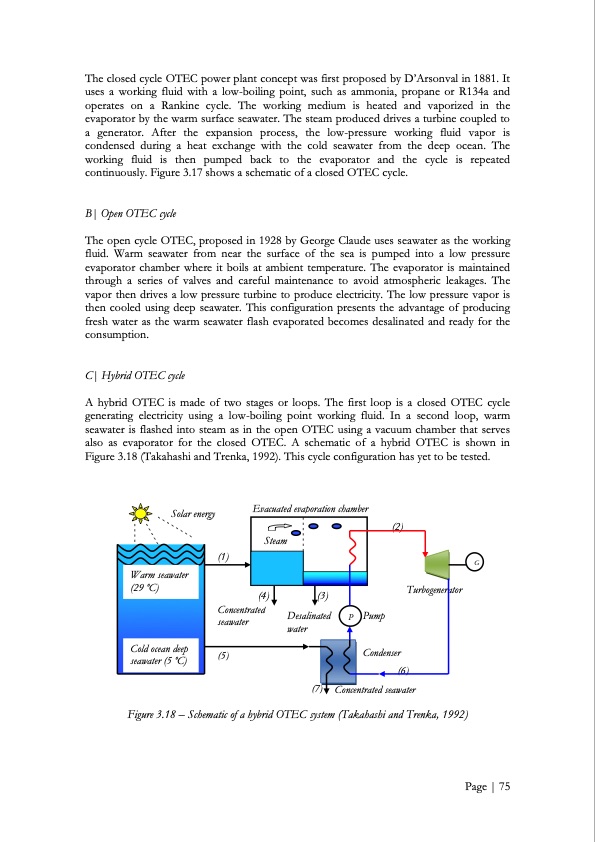

The closed cycle OTEC power plant concept was first proposed by D‘Arsonval in 1881. It uses a working fluid with a low-boiling point, such as ammonia, propane or R134a and operates on a Rankine cycle. The working medium is heated and vaporized in the evaporator by the warm surface seawater. The steam produced drives a turbine coupled to a generator. After the expansion process, the low-pressure working fluid vapor is condensed during a heat exchange with the cold seawater from the deep ocean. The working fluid is then pumped back to the evaporator and the cycle is repeated continuously. Figure 3.17 shows a schematic of a closed OTEC cycle. B| Open OTEC cycle The open cycle OTEC, proposed in 1928 by George Claude uses seawater as the working fluid. Warm seawater from near the surface of the sea is pumped into a low pressure evaporator chamber where it boils at ambient temperature. The evaporator is maintained through a series of valves and careful maintenance to avoid atmospheric leakages. The vapor then drives a low pressure turbine to produce electricity. The low pressure vapor is then cooled using deep seawater. This configuration presents the advantage of producing fresh water as the warm seawater flash evaporated becomes desalinated and ready for the consumption. C| Hybrid OTEC cycle A hybrid OTEC is made of two stages or loops. The first loop is a closed OTEC cycle generating electricity using a low-boiling point working fluid. In a second loop, warm seawater is flashed into steam as in the open OTEC using a vacuum chamber that serves also as evaporator for the closed OTEC. A schematic of a hybrid OTEC is shown in Figure 3.18 (Takahashi and Trenka, 1992). This cycle configuration has yet to be tested. Evacuated evaporation chamber Solar energy (1) (5) (2) P Pump (6) (7) Figure 3.18 – Schematic of a hybrid OTEC system (Takahashi and Trenka, 1992) G Steam Warm seawater (29 oC) (4) (3) Cold ocean deep seawater (5 oC) Concentrated seawater Desalinated water Condenser Turbogener ator Concentrated seawater Page | 75PDF Image | Low-Grade Heat Conversion into Power Using Small Scale Organic Rankine Cycles
