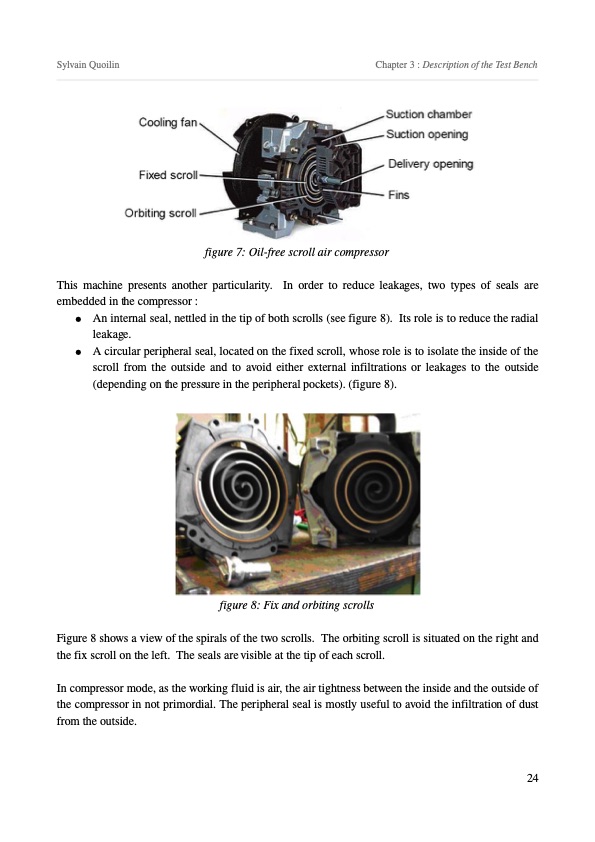

Sylvain Quoilin Chapter 3 : Description of the Test Bench figure 7: Oilfree scroll air compressor This machine presents another particularity. In order to reduce leakages, two types of seals are embedded in the compressor : ● An internal seal, nettled in the tip of both scrolls (see figure 8). Its role is to reduce the radial leakage. ● A circular peripheral seal, located on the fixed scroll, whose role is to isolate the inside of the scroll from the outside and to avoid either external infiltrations or leakages to the outside (depending on the pressure in the peripheral pockets). (figure 8). Figure 8 shows a view of the spirals of the two scrolls. The orbiting scroll is situated on the right and the fix scroll on the left. The seals are visible at the tip of each scroll. In compressor mode, as the working fluid is air, the air tightness between the inside and the outside of the compressor in not primordial. The peripheral seal is mostly useful to avoid the infiltration of dust from the outside. figure 8: Fix and orbiting scrolls 24PDF Image | Modeling of a Low Temperature Rankine Cycle for Small Scale Cogen
