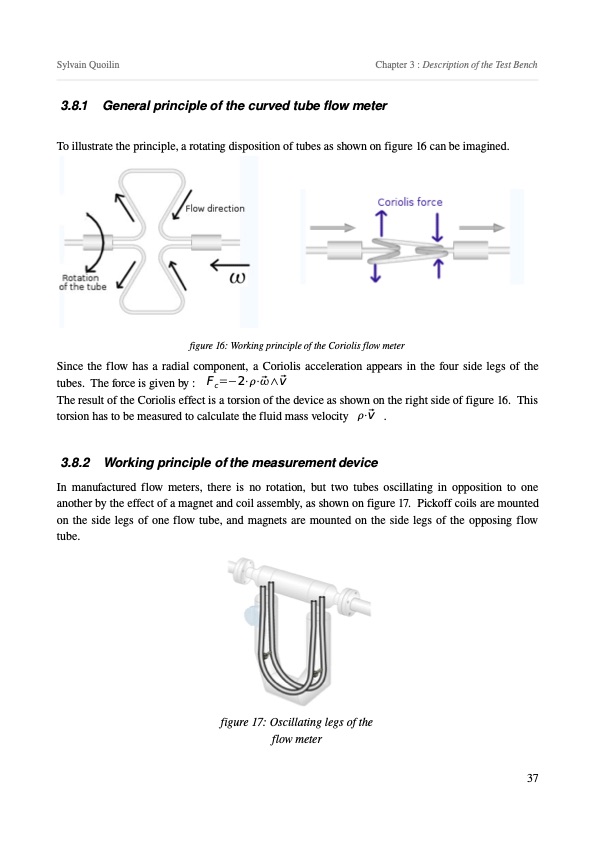

Text from PDF Page: 037
Sylvain Quoilin Chapter 3 : Description of the Test Bench 3.8.1 General principle of the curved tube flow meter To illustrate the principle, a rotating disposition of tubes as shown on figure 16 can be imagined. figure 16: Working principle of the Coriolis flow meter Since the flow has a radial component, a Coriolis acceleration appears in the four side legs of the tubes. The force is given by : torsion has to be measured to calculate the fluid mass velocity ⋅v . F c = − 2 ⋅ ⋅ ∧ v The result of the Coriolis effect is a torsion of the device as shown on the right side of figure 16. This 3.8.2 Working principle of the measurement device In manufactured flow meters, there is no rotation, but two tubes oscillating in opposition to one another by the effect of a magnet and coil assembly, as shown on figure 17. Pickoff coils are mounted on the side legs of one flow tube, and magnets are mounted on the side legs of the opposing flow tube. figure 17: Oscillating legs of the flow meter 37PDF Image | Modeling of a Low Temperature Rankine Cycle for Small Scale Cogen
