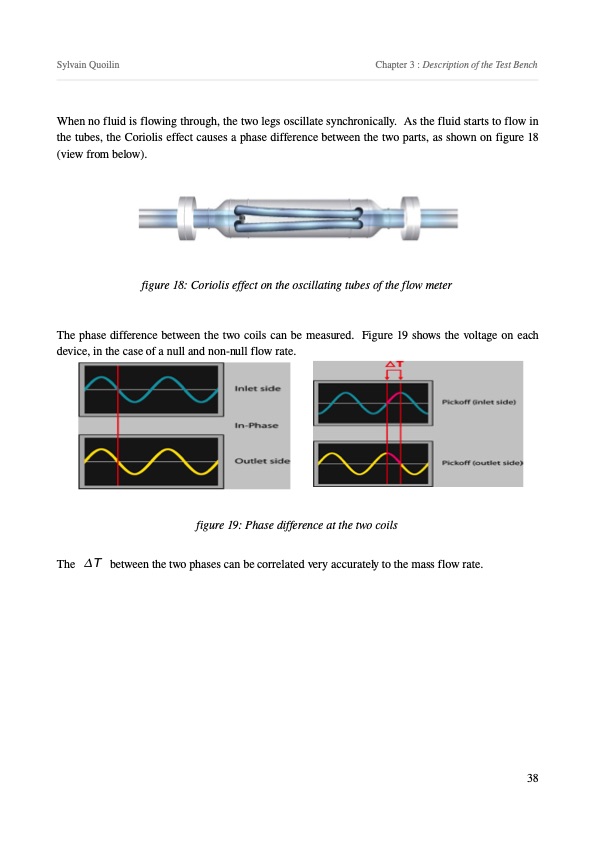

Sylvain Quoilin Chapter 3 : Description of the Test Bench When no fluid is flowing through, the two legs oscillate synchronically. As the fluid starts to flow in the tubes, the Coriolis effect causes a phase difference between the two parts, as shown on figure 18 (view from below). The phase difference between the two coils can be measured. Figure 19 shows the voltage on each device, in the case of a null and nonnull flow rate. figure 19: Phase difference at the two coils The T between the two phases can be correlated very accurately to the mass flow rate. figure 18: Coriolis effect on the oscillating tubes of the flow meter 38PDF Image | Modeling of a Low Temperature Rankine Cycle for Small Scale Cogen
