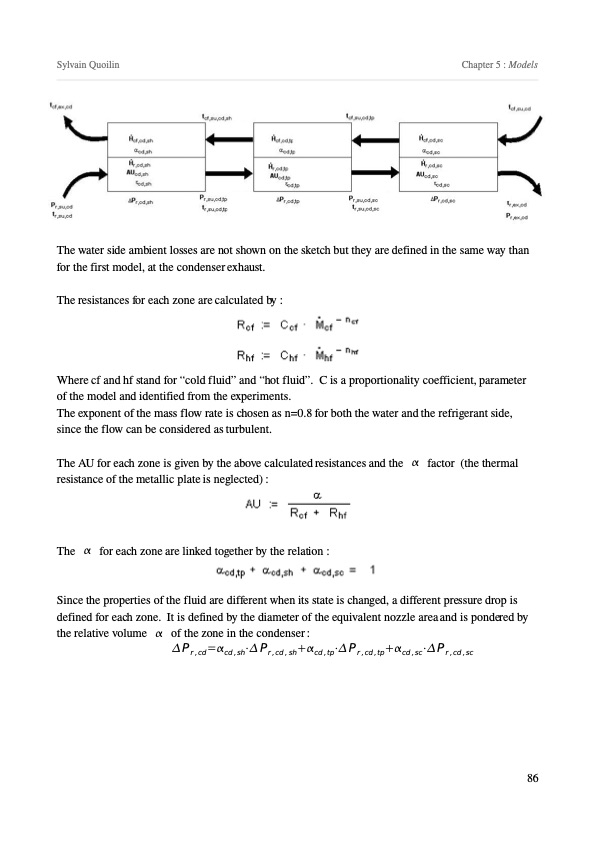

Sylvain Quoilin Chapter 5 : Models The water side ambient losses are not shown on the sketch but they are defined in the same way than for the first model, at the condenser exhaust. The resistances for each zone are calculated by : Where cf and hf stand for “cold fluid” and “hot fluid”. C is a proportionality coefficient, parameter of the model and identified from the experiments. The exponent of the mass flow rate is chosen as n=0.8 for both the water and the refrigerant side, since the flow can be considered as turbulent. The AU for each zone is given by the above calculated resistances and the  factor (the thermal resistance of the metallic plate is neglected) : The  for each zone are linked together by the relation : Since the properties of the fluid are different when its state is changed, a different pressure drop is defined for each zone. It is defined by the diameter of the equivalent nozzle area and is pondered by the relative volume  of the zone in the condenser : Pr ,cd=cd ,sh⋅Pr ,cd , shcd ,tp⋅Pr ,cd ,tpcd ,sc⋅Pr ,cd ,sc 86
