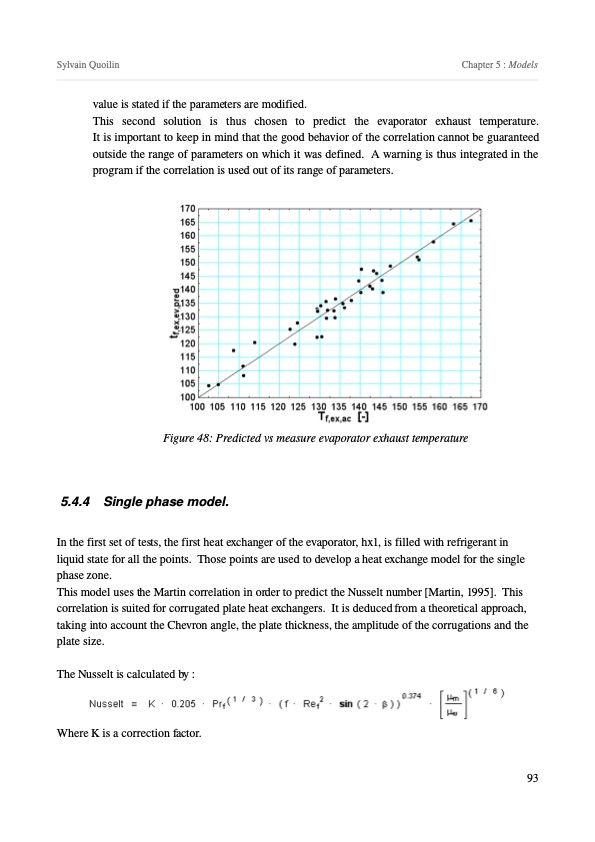

Sylvain Quoilin Chapter 5 : Models Figure 48: Predicted vs measure evaporator exhaust temperature 5.4.4 value is stated if the parameters are modified. This second solution is thus chosen to predict the evaporator exhaust temperature. It is important to keep in mind that the good behavior of the correlation cannot be guaranteed outside the range of parameters on which it was defined. A warning is thus integrated in the program if the correlation is used out of its range of parameters. Single phase model. In the first set of tests, the first heat exchanger of the evaporator, hx1, is filled with refrigerant in liquid state for all the points. Those points are used to develop a heat exchange model for the single phase zone. This model uses the Martin correlation in order to predict the Nusselt number [Martin, 1995]. This correlation is suited for corrugated plate heat exchangers. It is deduced from a theoretical approach, taking into account the Chevron angle, the plate thickness, the amplitude of the corrugations and the plate size. The Nusselt is calculated by : Where K is a correction factor. 93PDF Image | Modeling of a Low Temperature Rankine Cycle for Small Scale Cogen
