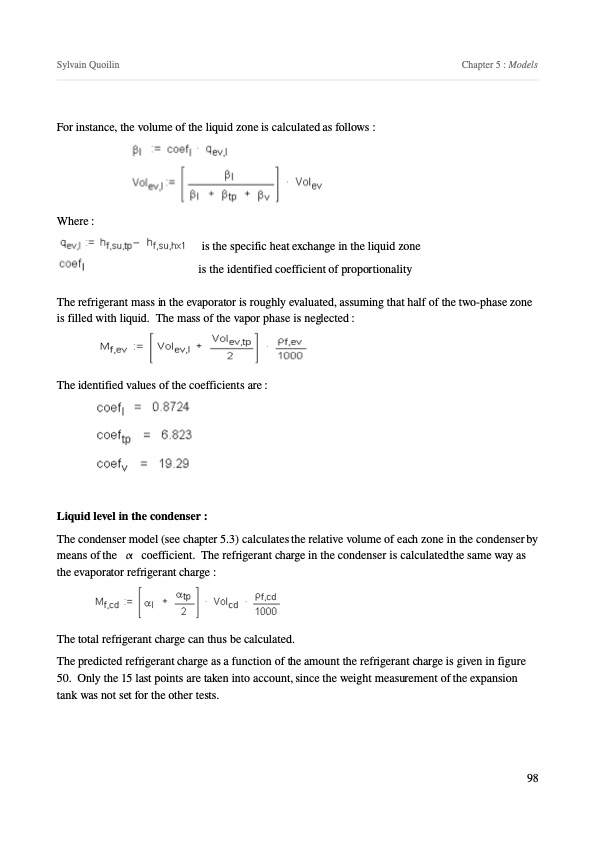

Sylvain Quoilin Chapter 5 : Models For instance, the volume of the liquid zone is calculated as follows : Where : is the specific heat exchange in the liquid zone is the identified coefficient of proportionality The refrigerant mass in the evaporator is roughly evaluated, assuming that half of the twophase zone is filled with liquid. The mass of the vapor phase is neglected : The identified values of the coefficients are : Liquid level in the condenser : The condenser model (see chapter 5.3) calculates the relative volume of each zone in the condenser by means of the coefficient. The refrigerant charge in the condenser is calculatedthe same way as the evaporator refrigerant charge : The total refrigerant charge can thus be calculated. The predicted refrigerant charge as a function of the amount the refrigerant charge is given in figure 50. Only the 15 last points are taken into account, since the weight measurement of the expansion tank was not set for the other tests. 98PDF Image | Modeling of a Low Temperature Rankine Cycle for Small Scale Cogen
