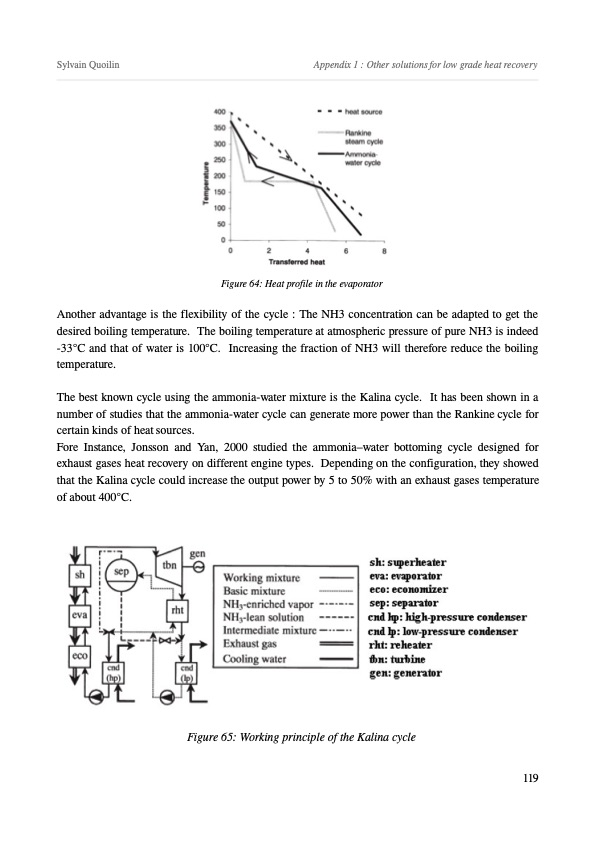

Sylvain Quoilin Appendix 1 : Other solutions for low grade heat recovery Figure 64: Heat profile in the evaporator Another advantage is the flexibility of the cycle : The NH3 concentration can be adapted to get the desired boiling temperature. The boiling temperature at atmospheric pressure of pure NH3 is indeed 33°C and that of water is 100°C. Increasing the fraction of NH3 will therefore reduce the boiling temperature. ThebestknowncycleusingtheammoniawatermixtureistheKalinacycle. Ithasbeenshownina number of studies that the ammoniawater cycle can generate more power than the Rankine cycle for certain kinds of heat sources. Fore Instance, Jonsson and Yan, 2000 studied the ammonia–water bottoming cycle designed for exhaust gases heat recovery on different engine types. Depending on the configuration, they showed that the Kalina cycle could increase the output power by 5 to 50% with an exhaust gases temperature of about 400°C. Figure 65: Working principle of the Kalina cycle 119PDF Image | Modeling of a Low Temperature Rankine Cycle for Small Scale Cogen
