PDF Publication Title:
Text from PDF Page: 055

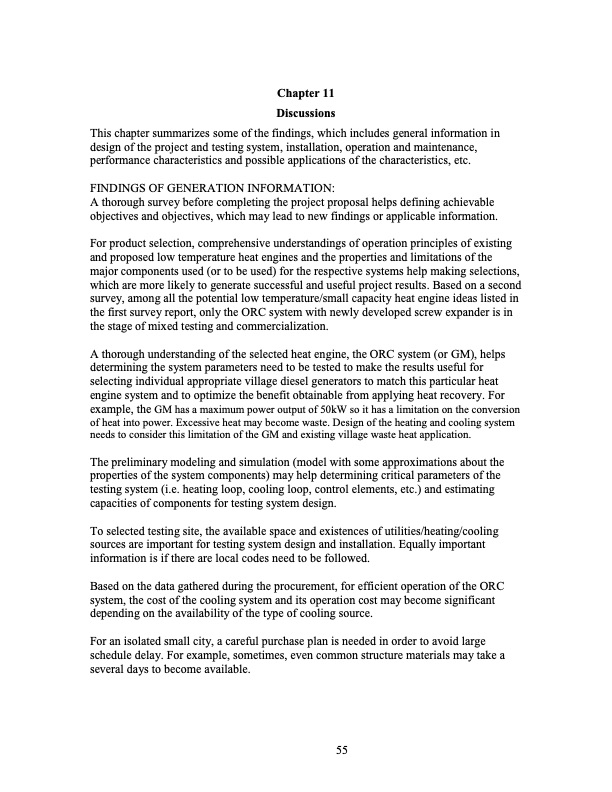

Chapter 11 Discussions This chapter summarizes some of the findings, which includes general information in design of the project and testing system, installation, operation and maintenance, performance characteristics and possible applications of the characteristics, etc. FINDINGS OF GENERATION INFORMATION: A thorough survey before completing the project proposal helps defining achievable objectives and objectives, which may lead to new findings or applicable information. For product selection, comprehensive understandings of operation principles of existing and proposed low temperature heat engines and the properties and limitations of the major components used (or to be used) for the respective systems help making selections, which are more likely to generate successful and useful project results. Based on a second survey, among all the potential low temperature/small capacity heat engine ideas listed in the first survey report, only the ORC system with newly developed screw expander is in the stage of mixed testing and commercialization. A thorough understanding of the selected heat engine, the ORC system (or GM), helps determining the system parameters need to be tested to make the results useful for selecting individual appropriate village diesel generators to match this particular heat engine system and to optimize the benefit obtainable from applying heat recovery. For example, the GM has a maximum power output of 50kW so it has a limitation on the conversion of heat into power. Excessive heat may become waste. Design of the heating and cooling system needs to consider this limitation of the GM and existing village waste heat application. The preliminary modeling and simulation (model with some approximations about the properties of the system components) may help determining critical parameters of the testing system (i.e. heating loop, cooling loop, control elements, etc.) and estimating capacities of components for testing system design. To selected testing site, the available space and existences of utilities/heating/cooling sources are important for testing system design and installation. Equally important information is if there are local codes need to be followed. Based on the data gathered during the procurement, for efficient operation of the ORC system, the cost of the cooling system and its operation cost may become significant depending on the availability of the type of cooling source. For an isolated small city, a careful purchase plan is needed in order to avoid large schedule delay. For example, sometimes, even common structure materials may take a several days to become available. 55PDF Image | Optimizing Heat Recovery Systems for Power Generation in Rural AK
PDF Search Title:
Optimizing Heat Recovery Systems for Power Generation in Rural AKOriginal File Name Searched:
TCC_Final_Project_Report.pdfDIY PDF Search: Google It | Yahoo | Bing
