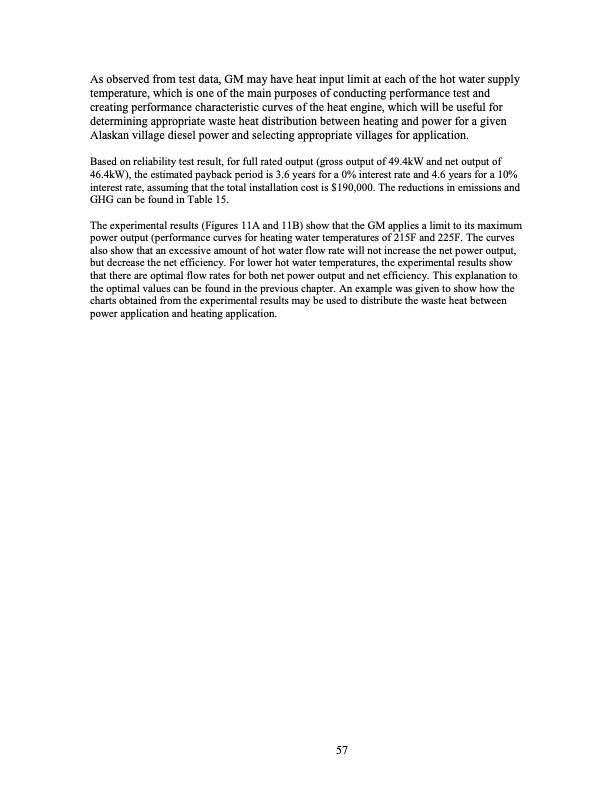

As observed from test data, GM may have heat input limit at each of the hot water supply temperature, which is one of the main purposes of conducting performance test and creating performance characteristic curves of the heat engine, which will be useful for determining appropriate waste heat distribution between heating and power for a given Alaskan village diesel power and selecting appropriate villages for application. Based on reliability test result, for full rated output (gross output of 49.4kW and net output of 46.4kW), the estimated payback period is 3.6 years for a 0% interest rate and 4.6 years for a 10% interest rate, assuming that the total installation cost is $190,000. The reductions in emissions and GHG can be found in Table 15. The experimental results (Figures 11A and 11B) show that the GM applies a limit to its maximum power output (performance curves for heating water temperatures of 215F and 225F. The curves also show that an excessive amount of hot water flow rate will not increase the net power output, but decrease the net efficiency. For lower hot water temperatures, the experimental results show that there are optimal flow rates for both net power output and net efficiency. This explanation to the optimal values can be found in the previous chapter. An example was given to show how the charts obtained from the experimental results may be used to distribute the waste heat between power application and heating application. 57PDF Image | Optimizing Heat Recovery Systems for Power Generation in Rural AK
