PDF Publication Title:
Text from PDF Page: 035

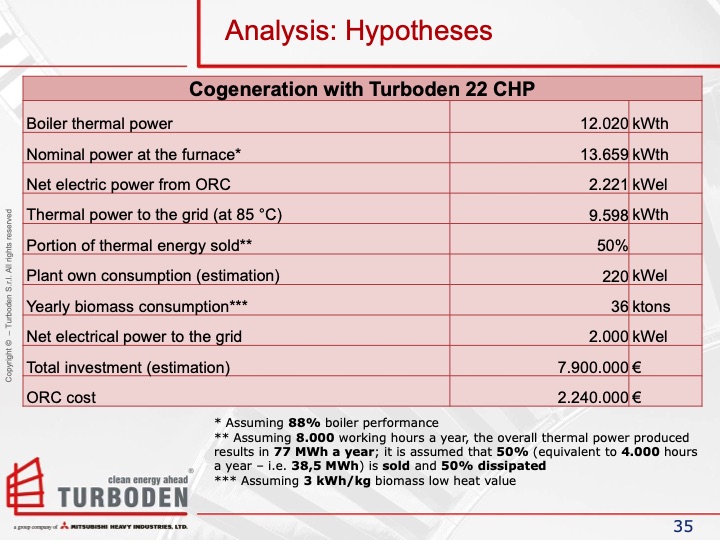

Analysis: Hypotheses Cogeneration with Turboden 22 CHP Boiler thermal power 12.020 kWth Nominal power at the furnace* 13.659 kWth Net electric power from ORC 2.221 kWel Thermal power to the grid (at 85 °C) 9.598 kWth Portion of thermal energy sold** 50% Plant own consumption (estimation) 220 kWel Yearly biomass consumption*** 36 ktons Net electrical power to the grid 2.000 kWel Total investment (estimation) 7.900.000 € ORC cost 2.240.000 € * Assuming 88% boiler performance ** Assuming 8.000 working hours a year, the overall thermal power produced results in 77 MWh a year; it is assumed that 50% (equivalent to 4.000 hours a year – i.e. 38,5 MWh) is sold and 50% dissipated *** Assuming 3 kWh/kg biomass low heat value 35 Copyright © – Turboden S.r.l. All rights reservedPDF Image | Organic Rankine Cycle overview and a Biomass case study
PDF Search Title:
Organic Rankine Cycle overview and a Biomass case studyOriginal File Name Searched:
seneschal.pdfDIY PDF Search: Google It | Yahoo | Bing
