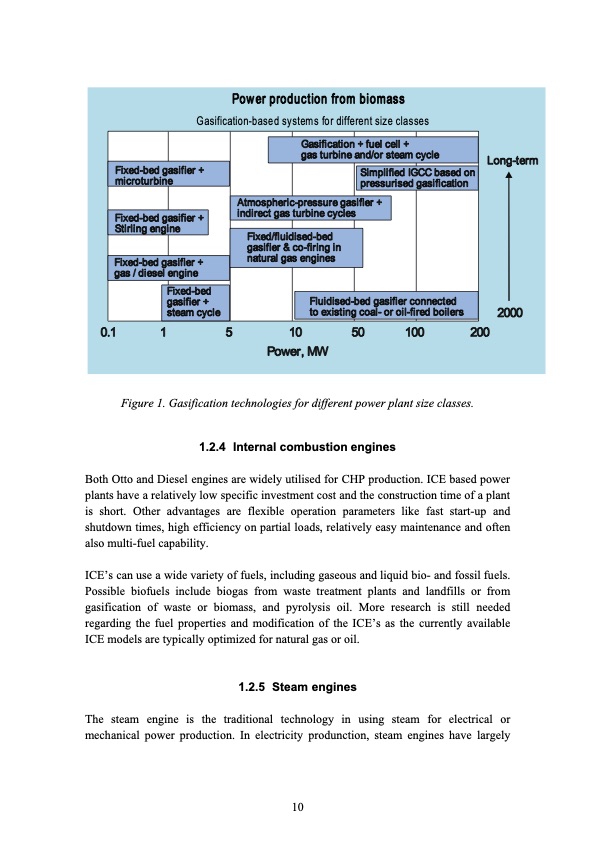

Power production from biomass Gasification-based systems for different size classes Gasification + fuel cell + gas turbine and/or steam cycle Fixed-bed gasifier + microturbine Atmospheric-pressure gasifier + indirect gas turbine cycles Simplified IGCC based on pressurised gasification Fixed-bed gasifier + Stirling engine Fixed-bed gasifier + gas / diesel engine Fixed/fluidised-bed gasifier & co-firing in natural gas engines Fixed-bed gasifier + steam cycle Fluidised-bed gasifier connected to existing coal- or oil-fired boilers Long-term 2000 0.1 1 5 10 50 100 200 Power, MW Figure 1. Gasification technologies for different power plant size classes. 1.2.4 Internal combustion engines Both Otto and Diesel engines are widely utilised for CHP production. ICE based power plants have a relatively low specific investment cost and the construction time of a plant is short. Other advantages are flexible operation parameters like fast start-up and shutdown times, high efficiency on partial loads, relatively easy maintenance and often also multi-fuel capability. ICE’s can use a wide variety of fuels, including gaseous and liquid bio- and fossil fuels. Possible biofuels include biogas from waste treatment plants and landfills or from gasification of waste or biomass, and pyrolysis oil. More research is still needed regarding the fuel properties and modification of the ICE’s as the currently available ICE models are typically optimized for natural gas or oil. 1.2.5 Steam engines The steam engine is the traditional technology in using steam for electrical or mechanical power production. In electricity produnction, steam engines have largely 10PDF Image | Small-scale biomass CHP Finland Denmark and Sweden
