PDF Publication Title:
Text from PDF Page: 028

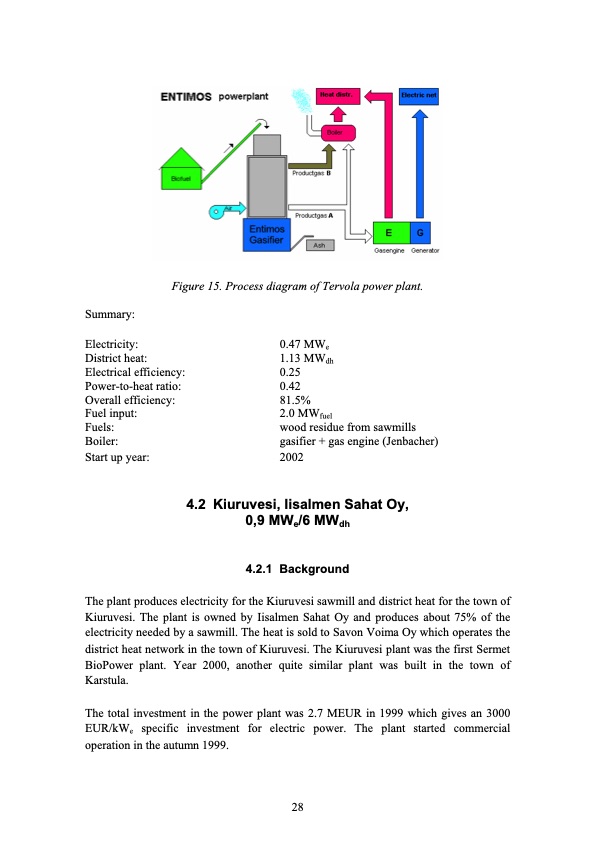

Summary: Electricity: District heat: Electrical efficiency: Power-to-heat ratio: Overall efficiency: Fuel input: Fuels: Boiler: Start up year: 0.47 MWe 1.13 MWdh 0.25 0.42 81.5% 2.0 MWfuel wood residue from sawmills gasifier + gas engine (Jenbacher) 2002 4.2 Kiuruvesi, Iisalmen Sahat Oy, 0,9 MWe/6 MWdh 4.2.1 Background Figure 15. Process diagram of Tervola power plant. The plant produces electricity for the Kiuruvesi sawmill and district heat for the town of Kiuruvesi. The plant is owned by Iisalmen Sahat Oy and produces about 75% of the electricity needed by a sawmill. The heat is sold to Savon Voima Oy which operates the district heat network in the town of Kiuruvesi. The Kiuruvesi plant was the first Sermet BioPower plant. Year 2000, another quite similar plant was built in the town of Karstula. The total investment in the power plant was 2.7 MEUR in 1999 which gives an 3000 EUR/kWe specific investment for electric power. The plant started commercial operation in the autumn 1999. 28PDF Image | Small-scale biomass CHP Finland Denmark and Sweden
