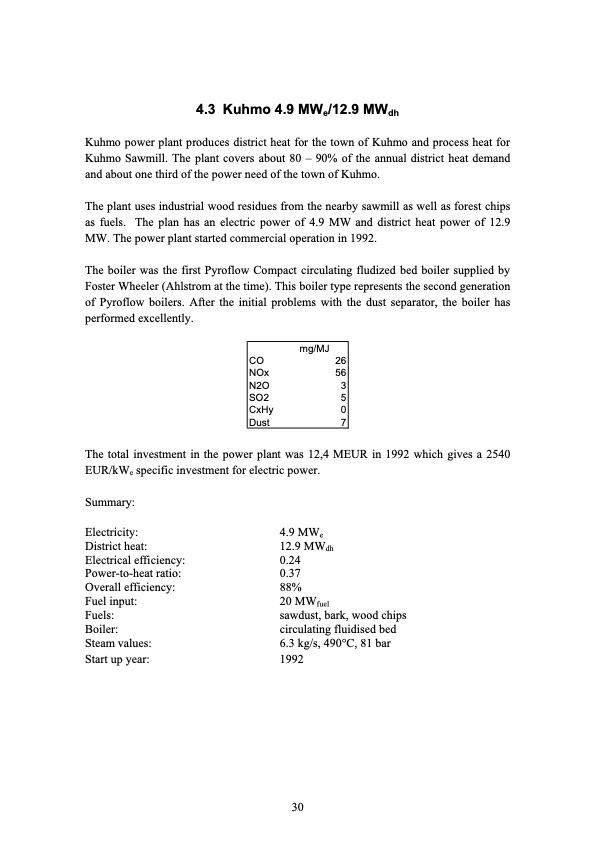

4.3 Kuhmo 4.9 MWe/12.9 MWdh Kuhmo power plant produces district heat for the town of Kuhmo and process heat for Kuhmo Sawmill. The plant covers about 80 – 90% of the annual district heat demand and about one third of the power need of the town of Kuhmo. The plant uses industrial wood residues from the nearby sawmill as well as forest chips as fuels. The plan has an electric power of 4.9 MW and district heat power of 12.9 MW. The power plant started commercial operation in 1992. The boiler was the first Pyroflow Compact circulating fludized bed boiler supplied by Foster Wheeler (Ahlstrom at the time). This boiler type represents the second generation of Pyroflow boilers. After the initial problems with the dust separator, the boiler has performed excellently. The total investment in the power plant was 12,4 MEUR in 1992 which gives a 2540 EUR/kWe specific investment for electric power. Summary: Electricity: District heat: Electrical efficiency: Power-to-heat ratio: Overall efficiency: Fuel input: Fuels: Boiler: Steam values: Start up year: 4.9 MWe 12.9 MWdh 0.24 0.37 88% 20 MWfuel sawdust, bark, wood chips circulating fluidised bed 6.3 kg/s, 490°C, 81 bar 1992 CO NOx N2O SO2 CxHy Dust 26 56 3 5 0 7 30 mg/MJPDF Image | Small-scale biomass CHP Finland Denmark and Sweden
