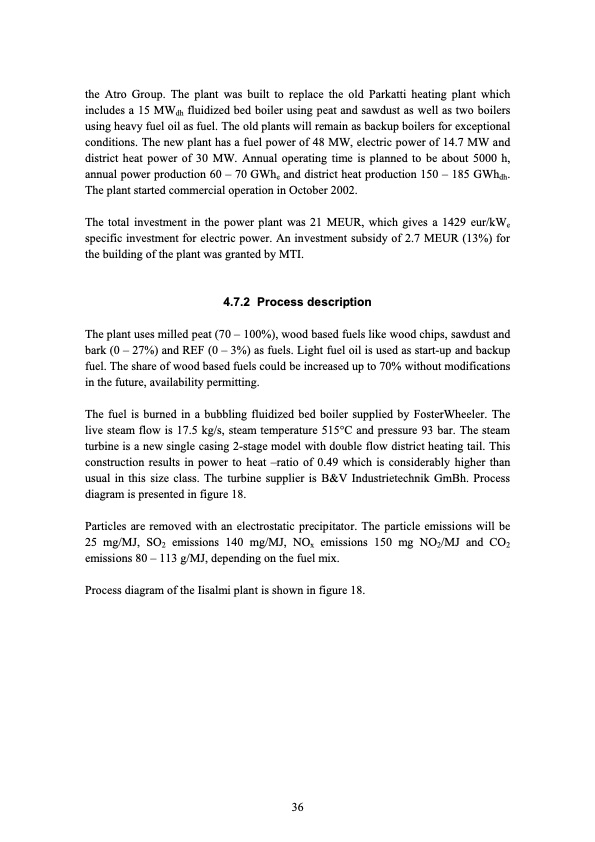

Text from PDF Page: 036
the Atro Group. The plant was built to replace the old Parkatti heating plant which includes a 15 MWdh fluidized bed boiler using peat and sawdust as well as two boilers using heavy fuel oil as fuel. The old plants will remain as backup boilers for exceptional conditions. The new plant has a fuel power of 48 MW, electric power of 14.7 MW and district heat power of 30 MW. Annual operating time is planned to be about 5000 h, annual power production 60 – 70 GWhe and district heat production 150 – 185 GWhdh. The plant started commercial operation in October 2002. The total investment in the power plant was 21 MEUR, which gives a 1429 eur/kWe specific investment for electric power. An investment subsidy of 2.7 MEUR (13%) for the building of the plant was granted by MTI. 4.7.2 Process description The plant uses milled peat (70 – 100%), wood based fuels like wood chips, sawdust and bark (0 – 27%) and REF (0 – 3%) as fuels. Light fuel oil is used as start-up and backup fuel. The share of wood based fuels could be increased up to 70% without modifications in the future, availability permitting. The fuel is burned in a bubbling fluidized bed boiler supplied by FosterWheeler. The live steam flow is 17.5 kg/s, steam temperature 515°C and pressure 93 bar. The steam turbine is a new single casing 2-stage model with double flow district heating tail. This construction results in power to heat –ratio of 0.49 which is considerably higher than usual in this size class. The turbine supplier is B&V Industrietechnik GmBh. Process diagram is presented in figure 18. Particles are removed with an electrostatic precipitator. The particle emissions will be 25 mg/MJ, SO2 emissions 140 mg/MJ, NOx emissions 150 mg NO2/MJ and CO2 emissions 80 – 113 g/MJ, depending on the fuel mix. Process diagram of the Iisalmi plant is shown in figure 18. 36PDF Image | Small-scale biomass CHP Finland Denmark and Sweden
