PDF Publication Title:

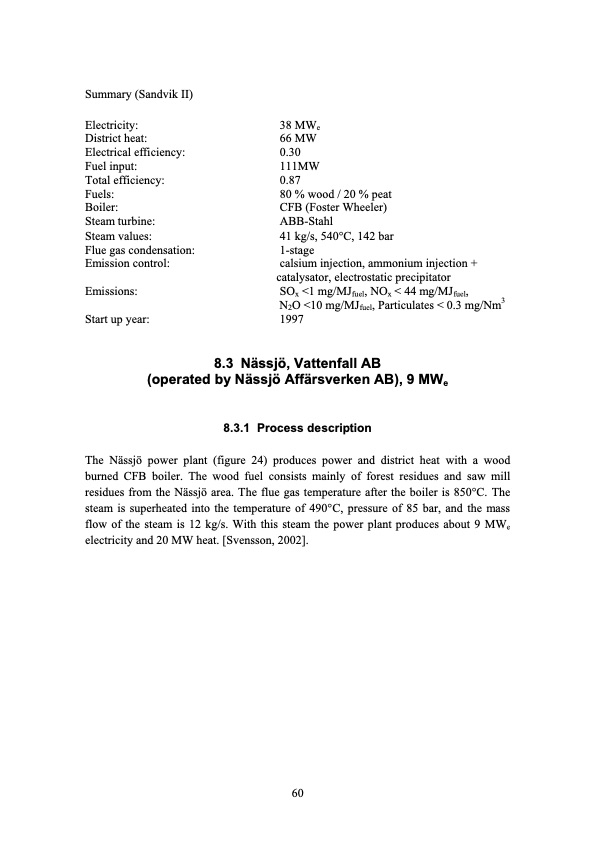

Text from PDF Page: 060
Summary (Sandvik II) Electricity: District heat: Electrical efficiency: Fuel input: Total efficiency: Fuels: Boiler: Steam turbine: Steam values: Flue gas condensation: Emission control: Emissions: Start up year: 38 MWe 66 MW 0.30 111MW 0.87 80 % wood / 20 % peat CFB (Foster Wheeler) ABB-Stahl 41 kg/s, 540°C, 142 bar 1-stage calsium injection, ammonium injection + catalysator, electrostatic precipitator SOx <1 mg/MJfuel, NOx < 44 mg/MJfuel, 3 N2O <10 mg/MJfuel, Particulates < 0.3 mg/Nm 1997 8.3 Nässjö, Vattenfall AB (operated by Nässjö Affärsverken AB), 9 MWe 8.3.1 Process description The Nässjö power plant (figure 24) produces power and district heat with a wood burned CFB boiler. The wood fuel consists mainly of forest residues and saw mill residues from the Nässjö area. The flue gas temperature after the boiler is 850°C. The steam is superheated into the temperature of 490°C, pressure of 85 bar, and the mass flow of the steam is 12 kg/s. With this steam the power plant produces about 9 MWe electricity and 20 MW heat. [Svensson, 2002]. 60PDF Image | Small-scale biomass CHP Finland Denmark and Sweden
PDF Search Title:
Small-scale biomass CHP Finland Denmark and SwedenOriginal File Name Searched:
small_scale_biomass_chp_technologies.pdfDIY PDF Search: Google It | Yahoo | Bing
