PDF Publication Title:
Text from PDF Page: 031

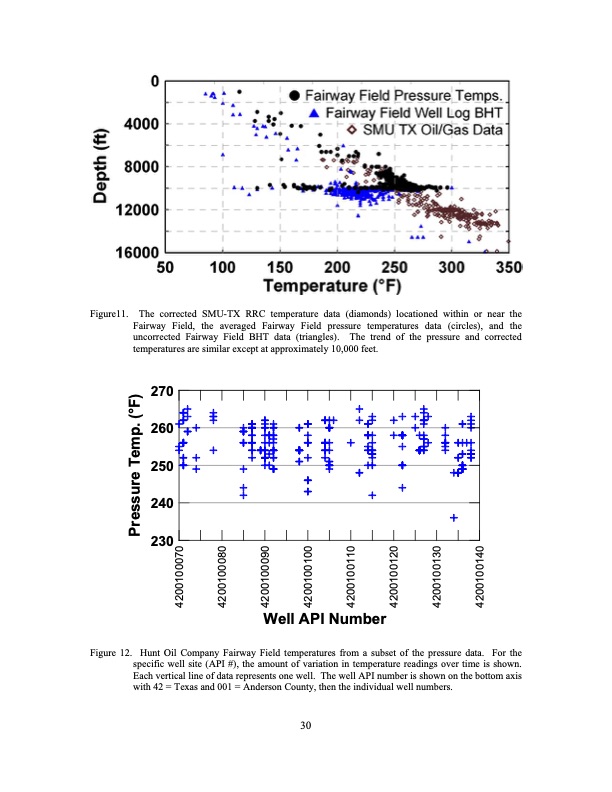

Figure11. The corrected SMU-TX RRC temperature data (diamonds) locationed within or near the Fairway Field, the averaged Fairway Field pressure temperatures data (circles), and the uncorrected Fairway Field BHT data (triangles). The trend of the pressure and corrected temperatures are similar except at approximately 10,000 feet. 270 260 250 240 230 Well API Number Figure 12. Hunt Oil Company Fairway Field temperatures from a subset of the pressure data. For the specific well site (API #), the amount of variation in temperature readings over time is shown. Each vertical line of data represents one well. The well API number is shown on the bottom axis with 42 = Texas and 001 = Anderson County, then the individual well numbers. 30 4200100070 4200100080 4200100090 4200100100 4200100110 4200100120 4200100130 4200100140 Pressure Temp. (°F)PDF Image | Texas Geothermal Assessment for the I35 Corridor East
PDF Search Title:
Texas Geothermal Assessment for the I35 Corridor EastOriginal File Name Searched:
TexasGeothermalAssessment_I_35Corridor.pdfDIY PDF Search: Google It | Yahoo | Bing
