Text from PDF Page: 034

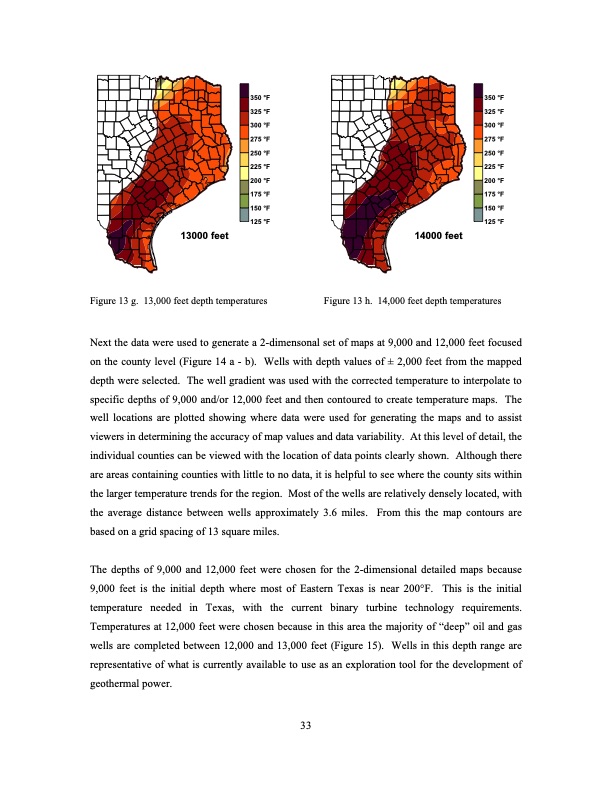

350 °F 325 °F 300 °F 275 °F 250 °F 225 °F 200 °F 175 °F 150 °F 125 °F Figure 13 g. 13,000 feet depth temperatures 350 °F 325 °F 300 °F 275 °F 250 °F 225 °F 200 °F 175 °F 150 °F 125 °F Figure 13 h. 14,000 feet depth temperatures 13000 feet 14000 feet Next the data were used to generate a 2-dimensonal set of maps at 9,000 and 12,000 feet focused on the county level (Figure 14 a - b). Wells with depth values of ± 2,000 feet from the mapped depth were selected. The well gradient was used with the corrected temperature to interpolate to specific depths of 9,000 and/or 12,000 feet and then contoured to create temperature maps. The well locations are plotted showing where data were used for generating the maps and to assist viewers in determining the accuracy of map values and data variability. At this level of detail, the individual counties can be viewed with the location of data points clearly shown. Although there are areas containing counties with little to no data, it is helpful to see where the county sits within the larger temperature trends for the region. Most of the wells are relatively densely located, with the average distance between wells approximately 3.6 miles. From this the map contours are based on a grid spacing of 13 square miles. The depths of 9,000 and 12,000 feet were chosen for the 2-dimensional detailed maps because 9,000 feet is the initial depth where most of Eastern Texas is near 200°F. This is the initial temperature needed in Texas, with the current binary turbine technology requirements. Temperatures at 12,000 feet were chosen because in this area the majority of “deep” oil and gas wells are completed between 12,000 and 13,000 feet (Figure 15). Wells in this depth range are representative of what is currently available to use as an exploration tool for the development of geothermal power. 33PDF Image | Texas Geothermal Assessment for the I35 Corridor East
