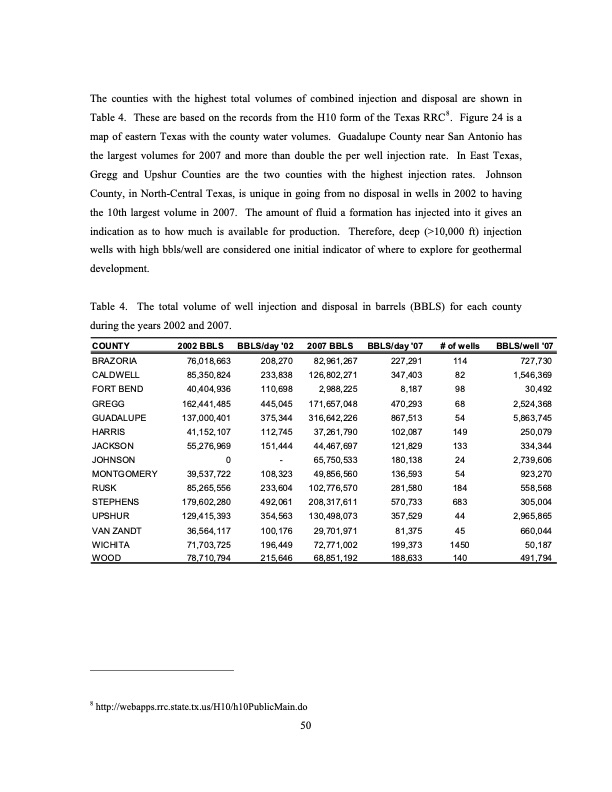

The counties with the highest total volumes of combined injection and disposal are shown in Table 4. These are based on the records from the H10 form of the Texas RRC8. Figure 24 is a map of eastern Texas with the county water volumes. Guadalupe County near San Antonio has the largest volumes for 2007 and more than double the per well injection rate. In East Texas, Gregg and Upshur Counties are the two counties with the highest injection rates. Johnson County, in North-Central Texas, is unique in going from no disposal in wells in 2002 to having the 10th largest volume in 2007. The amount of fluid a formation has injected into it gives an indication as to how much is available for production. Therefore, deep (>10,000 ft) injection wells with high bbls/well are considered one initial indicator of where to explore for geothermal development. Table 4. The total volume of well injection and disposal in barrels (BBLS) for each county during the years 2002 and 2007. COUNTY BRAZ ORIA CALDWELL FORT BEND GREGG GUADALUPE HARRIS JACKSON JOHNSON MONTGOMERY RUSK STEPHENS UPSHUR VAN ZANDT WICHITA WOOD 2002 BBLS BBLS/day '02 208,270 233,838 110,698 445,045 375,344 112,745 151,444 - 108,323 233,604 492,061 354,563 100,176 196,449 215,646 2007 BBLS BBLS/day '07 22 7,291 34 7,403 8,187 47 0,293 86 7,513 10 2,087 121,829 180,138 136,593 281,580 570,733 357,529 81,375 199,373 188,633 # of wells 114 82 98 68 54 149 133 24 54 184 683 44 45 1450 140 BBLS/well '07 727,730 1,546,369 30,492 2,524,368 5,863,745 250,079 334,344 2,739,606 923,270 558,568 305,004 2,965,865 660,044 50,187 491,794 1 1 1 1 76 ,0 1 8, 66 3 85 ,3 5 0, 82 4 40 ,4 0 4, 93 6 62 ,4 4 1, 48 5 37 ,0 0 0, 40 1 41 ,1 5 2, 10 7 55 ,2 7 6, 96 9 0 39 ,5 3 7, 72 2 85 ,2 6 5, 55 6 79 ,6 0 2, 28 0 29 ,4 1 5, 39 3 36 ,5 6 4, 11 7 71 ,7 0 3, 72 5 78 ,7 1 0, 79 4 1 1 3 1 2 1 8 2, 96 1, 26 7 2 6, 80 2, 27 1 2, 98 8, 22 5 7 1, 65 7, 04 8 1 6, 64 2, 22 6 3 7, 26 1, 79 0 4 4, 46 7, 69 7 6 5, 75 0, 53 3 4 9, 85 6, 56 0 0 2, 77 6, 57 0 0 8, 31 7, 61 1 3 0, 49 8, 07 3 2 9, 70 1, 97 1 7 2, 77 1, 00 2 6 8, 85 1, 19 2 8 http://webapps.rrc.state.tx.us/H10/h10PublicMain.do 50PDF Image | Texas Geothermal Assessment for the I35 Corridor East
