PDF Publication Title:
Text from PDF Page: 073

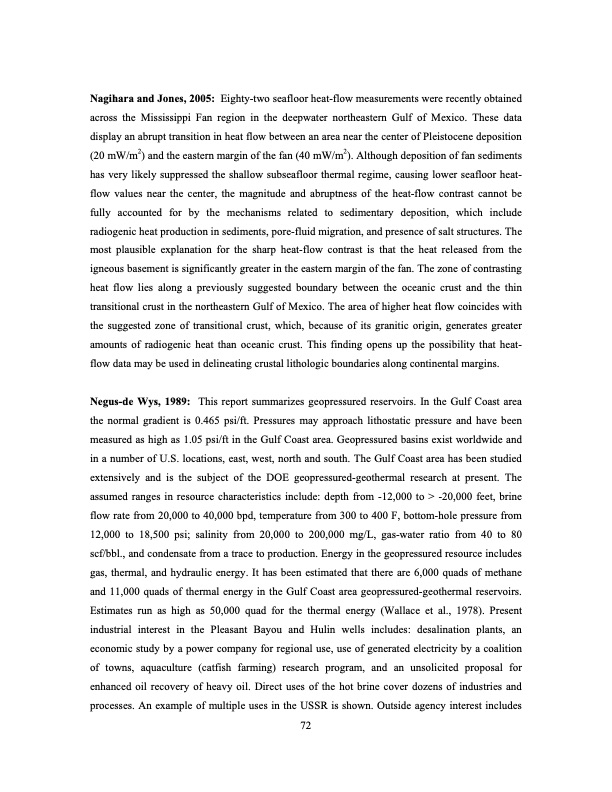

Nagihara and Jones, 2005: Eighty-two seafloor heat-flow measurements were recently obtained across the Mississippi Fan region in the deepwater northeastern Gulf of Mexico. These data display an abrupt transition in heat flow between an area near the center of Pleistocene deposition (20 mW/m2) and the eastern margin of the fan (40 mW/m2). Although deposition of fan sediments has very likely suppressed the shallow subseafloor thermal regime, causing lower seafloor heat- flow values near the center, the magnitude and abruptness of the heat-flow contrast cannot be fully accounted for by the mechanisms related to sedimentary deposition, which include radiogenic heat production in sediments, pore-fluid migration, and presence of salt structures. The most plausible explanation for the sharp heat-flow contrast is that the heat released from the igneous basement is significantly greater in the eastern margin of the fan. The zone of contrasting heat flow lies along a previously suggested boundary between the oceanic crust and the thin transitional crust in the northeastern Gulf of Mexico. The area of higher heat flow coincides with the suggested zone of transitional crust, which, because of its granitic origin, generates greater amounts of radiogenic heat than oceanic crust. This finding opens up the possibility that heat- flow data may be used in delineating crustal lithologic boundaries along continental margins. Negus-de Wys, 1989: This report summarizes geopressured reservoirs. In the Gulf Coast area the normal gradient is 0.465 psi/ft. Pressures may approach lithostatic pressure and have been measured as high as 1.05 psi/ft in the Gulf Coast area. Geopressured basins exist worldwide and in a number of U.S. locations, east, west, north and south. The Gulf Coast area has been studied extensively and is the subject of the DOE geopressured-geothermal research at present. The assumed ranges in resource characteristics include: depth from -12,000 to > -20,000 feet, brine flow rate from 20,000 to 40,000 bpd, temperature from 300 to 400 F, bottom-hole pressure from 12,000 to 18,500 psi; salinity from 20,000 to 200,000 mg/L, gas-water ratio from 40 to 80 scf/bbl., and condensate from a trace to production. Energy in the geopressured resource includes gas, thermal, and hydraulic energy. It has been estimated that there are 6,000 quads of methane and 11,000 quads of thermal energy in the Gulf Coast area geopressured-geothermal reservoirs. Estimates run as high as 50,000 quad for the thermal energy (Wallace et al., 1978). Present industrial interest in the Pleasant Bayou and Hulin wells includes: desalination plants, an economic study by a power company for regional use, use of generated electricity by a coalition of towns, aquaculture (catfish farming) research program, and an unsolicited proposal for enhanced oil recovery of heavy oil. Direct uses of the hot brine cover dozens of industries and processes. An example of multiple uses in the USSR is shown. Outside agency interest includes 72PDF Image | Texas Geothermal Assessment for the I35 Corridor East
PDF Search Title:
Texas Geothermal Assessment for the I35 Corridor EastOriginal File Name Searched:
TexasGeothermalAssessment_I_35Corridor.pdfDIY PDF Search: Google It | Yahoo | Bing
