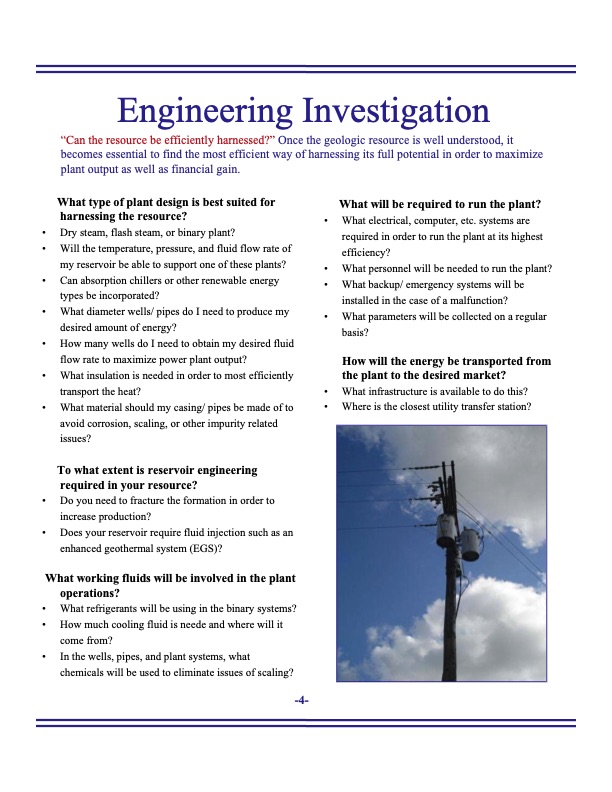

Engineering Investigation “Can the resource be efficiently harnessed?” Once the geologic resource is well understood, it becomes essential to find the most efficient way of harnessing its full potential in order to maximize plant output as well as financial gain. What type of plant design is best suited for harnessing the resource? • Dry steam, flash steam, or binary plant? • Will the temperature, pressure, and fluid flow rate of my reservoir be able to support one of these plants? • Can absorption chillers or other renewable energy types be incorporated? • What diameter wells/ pipes do I need to produce my desired amount of energy? • How many wells do I need to obtain my desired fluid flow rate to maximize power plant output? • What insulation is needed in order to most efficiently transport the heat? • What material should my casing/ pipes be made of to avoid corrosion, scaling, or other impurity related issues? To what extent is reservoir engineering required in your resource? • Do you need to fracture the formation in order to increase production? • Does your reservoir require fluid injection such as an enhanced geothermal system (EGS)? What working fluids will be involved in the plant operations? • What refrigerants will be using in the binary systems? • How much cooling fluid is neede and where will it come from? • In the wells, pipes, and plant systems, what chemicals will be used to eliminate issues of scaling? What will be required to run the plant? • What electrical, computer, etc. systems are required in order to run the plant at its highest efficiency? • What personnel will be needed to run the plant? • What backup/ emergency systems will be installed in the case of a malfunction? • What parameters will be collected on a regular basis? How will the energy be transported from the plant to the desired market? • What infrastructure is available to do this? • Where is the closest utility transfer station? -4-PDF Image | Texas Geothermal Assessment for the I35 Corridor East
