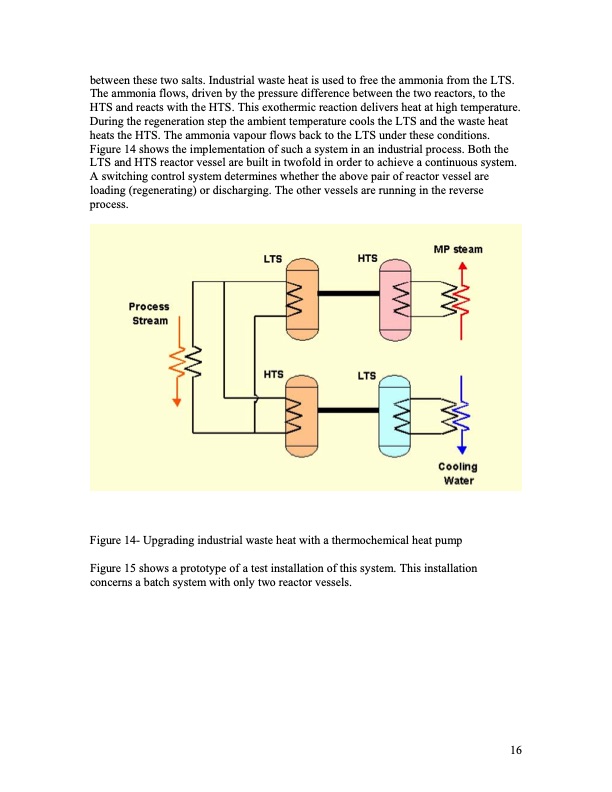

between these two salts. Industrial waste heat is used to free the ammonia from the LTS. The ammonia flows, driven by the pressure difference between the two reactors, to the HTS and reacts with the HTS. This exothermic reaction delivers heat at high temperature. During the regeneration step the ambient temperature cools the LTS and the waste heat heats the HTS. The ammonia vapour flows back to the LTS under these conditions. Figure 14 shows the implementation of such a system in an industrial process. Both the LTS and HTS reactor vessel are built in twofold in order to achieve a continuous system. A switching control system determines whether the above pair of reactor vessel are loading (regenerating) or discharging. The other vessels are running in the reverse process. Figure 14- Upgrading industrial waste heat with a thermochemical heat pump Figure 15 shows a prototype of a test installation of this system. This installation concerns a batch system with only two reactor vessels. 16PDF Image | Thermochemical Heat Pump
