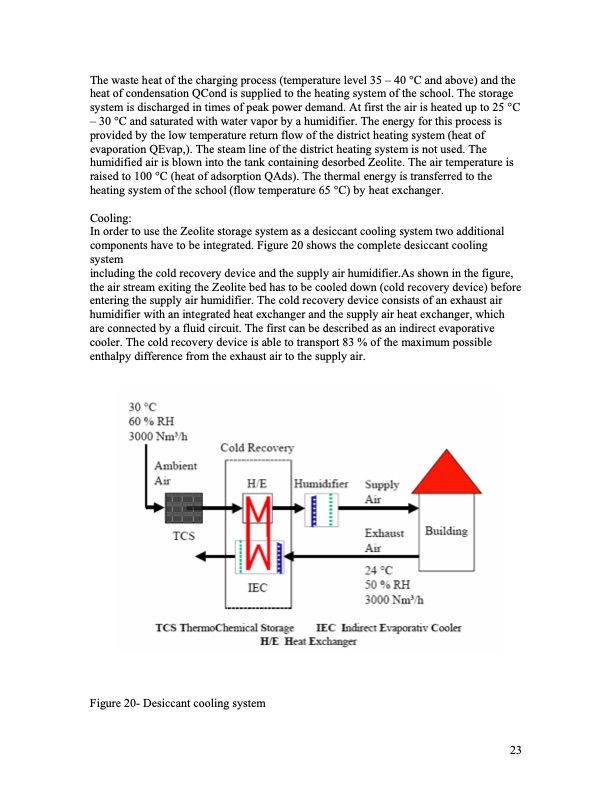

The waste heat of the charging process (temperature level 35 – 40 °C and above) and the heat of condensation QCond is supplied to the heating system of the school. The storage system is discharged in times of peak power demand. At first the air is heated up to 25 °C – 30 °C and saturated with water vapor by a humidifier. The energy for this process is provided by the low temperature return flow of the district heating system (heat of evaporation QEvap,). The steam line of the district heating system is not used. The humidified air is blown into the tank containing desorbed Zeolite. The air temperature is raised to 100 °C (heat of adsorption QAds). The thermal energy is transferred to the heating system of the school (flow temperature 65 °C) by heat exchanger. Cooling: In order to use the Zeolite storage system as a desiccant cooling system two additional components have to be integrated. Figure 20 shows the complete desiccant cooling system including the cold recovery device and the supply air humidifier.As shown in the figure, the air stream exiting the Zeolite bed has to be cooled down (cold recovery device) before entering the supply air humidifier. The cold recovery device consists of an exhaust air humidifier with an integrated heat exchanger and the supply air heat exchanger, which are connected by a fluid circuit. The first can be described as an indirect evaporative cooler. The cold recovery device is able to transport 83 % of the maximum possible enthalpy difference from the exhaust air to the supply air. Figure 20- Desiccant cooling system 23PDF Image | Thermochemical Heat Pump
