PDF Publication Title:

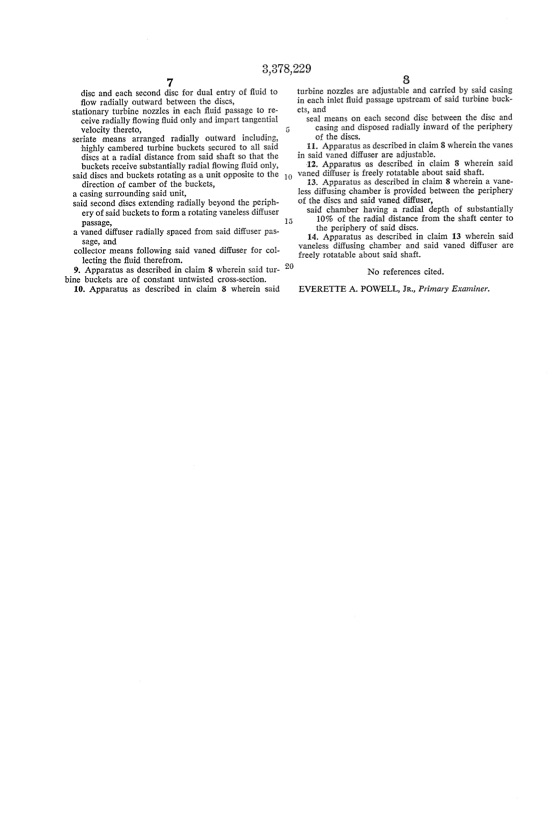

Text from PDF Page: 006
7 disc and each second disc for dual entry of ?uid to ?ow radially outward between the discs, stationary turbine nozzles in each ?uid passage to re ceiveradially?owing?uidonlyandimparttangential velocitythereto, seriate means arranged radially outward including, highly cambered turbine buckets secured to all said discs at a radial distance from said shaft so that the buckets receive substantially radial ?owing ?uid only, said discs and buckets rotating as a unit opposite to the direction of camber of the buckets, acasingsurroundingsaidunit, said second discs extending radially beyond the periph ery of said buckets to form a rotating vaneless diffuser passage, a vaned diffuser radially spaced from said diffuser pas sage, and collector means following said vaned diffuser for col lecting the ?uid therefrom. 9.Apparatusasdescribedinclaim8whereinsaidtur 20 bine buckets are of constant untwisted cross-section. 10. Apparatus as described in claim 8 wherein said 8 turbine nozzles are adjustable and carried by said casing in each inlet ?uid passage upstream of said turbine buck ets, and seal means on each second disc between the disc and casing and disposed radially inward of the periphery of the discs. 11. Apparatusasdescribedinclaim8whereinthevanes in said vaned diffuser are adjustable. '12. Apparatus as described in claim 8 wherein said vaned diffuser is freely rotatable about said shaft. 13. Apparatus as described in claim 8 wherein a vane less diffusing chamber is provided between the periphery of the discs and said vaned diffuser, said chamber having a radial depth of substantially 10% of the radial distance from the shaft center to the periphery of said discs. 14. Apparatus as described in claim 13 wherein said vaneless diffusing chamber and said vaned diffuser are freely rotatable about said shaft. No references cited. EVERETTE A. POWELL, JR.,Primary Examiner. 8,378,229PDF Image | ERWIN RADIAL FLOW TURBINE
PDF Search Title:
ERWIN RADIAL FLOW TURBINEOriginal File Name Searched:
US3378229.pdfDIY PDF Search: Google It | Yahoo | Bing
