PDF Publication Title:

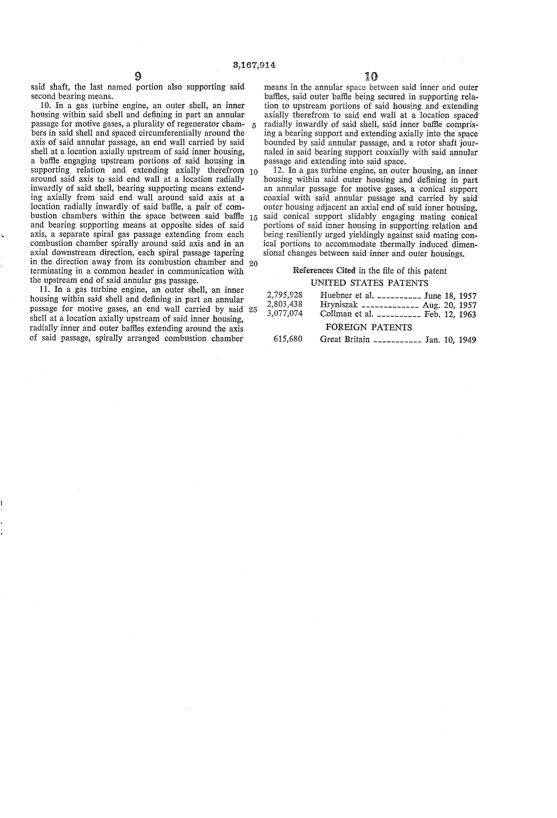

Text from PDF Page: 010
9 said shaft, the last named portion also supporting said second bearing means. 10. In a gas turbine engine, an outer shell, an inner housing within said shell and defining in part an annular passage for motive gases, a plurality of regenerator cham bers in said shell and spaced circumferentially around the axis of said annular passage, an end wall carried by said shell at a location axially upstream of said inner housing, a baffle engaging upstream portions of said housing in supporting relation and extending axially therefrom 10 around said axis to said end wall at a location radially inwardly of said shell, bearing supporting means extend ing axially from said end wall around said axis at a location radially inwardly of said bafiie, a pair of com bustion chambers within the space between said bañie and bearing supporting means at opposite sides of said axis, a separate spiral gas passage extending from each combustion chamber spirally around said axis and in an axial downstream direction, each spiral passage tapering in the direction away from its combustion chamber and 20 terminatinginacommon headerincommunicationwith the upstream end of said annular gas passage. 11. In a gas turbine engine, an outer shell, an inner housing within said shell and defining in part an annular passage for motive gases, an end wall carried by said 25 shell at a location axially upstream of said inner housing, radiallyinnerandouterbatiiesextendingaroundtheaxis of said passage, spirally arranged combustion chamber means in the annular space between said inner and outer baffles, said outer bañle being secured in supporting rela tion to upstream portions of said housing and extending axially therefrom to said end wall at a location spaced radially inwardly of said shell, said inner baiile compris~ ing a bearing support and extending axially into the space bounded by said annular passage, and a rotor shaft jour naled in said bearing support coaxially with said annular passage and extending into said space. 12. In a gas turbine engine, an outer housing, an inner housing within said outer housing and deñning in part an annular passage for motive gases, a conical support coaxial with said annular passage and carried by said outer housing adjacent an axial end of said inner housing, said conical support slidably engaging mating conical portions of said inner housing in supporting relation and beingresilientlyurgedyieldinglyagainstsaidmatingcon ical portions to accommodate thermally induced dimen sional changes between said inner and outer housings. ReferencesCitedintheileofthispatent UNITED STATES PATENTS 3,167,914 2,795,928 2,803,438 3,077,074 615,680 Huebner et al___________ June 18, 1957 Hryniszak _____________ Aug. 20, 1957 Collman et al___________ Feb. 12, 1963 FOREIGN PATENTS Great Britain ___________ Jan. 10, 1949PDF Image | GAS TURBINE ENGINE HOUSING
PDF Search Title:
GAS TURBINE ENGINE HOUSINGOriginal File Name Searched:
US3167914.pdfDIY PDF Search: Google It | Yahoo | Bing
