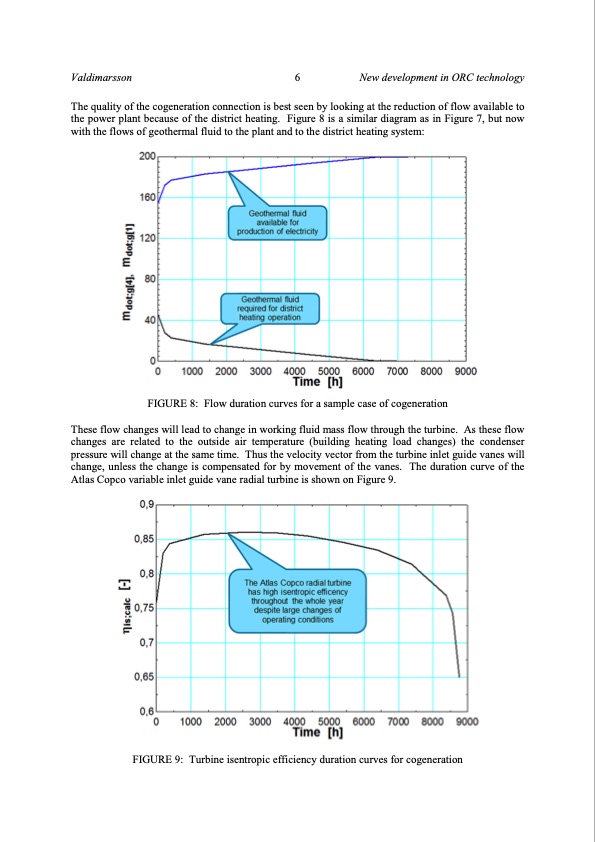

Valdimarsson 6 New development in ORC technology The quality of the cogeneration connection is best seen by looking at the reduction of flow available to the power plant because of the district heating. Figure 8 is a similar diagram as in Figure 7, but now with the flows of geothermal fluid to the plant and to the district heating system: FIGURE 8: Flow duration curves for a sample case of cogeneration These flow changes will lead to change in working fluid mass flow through the turbine. As these flow changes are related to the outside air temperature (building heating load changes) the condenser pressure will change at the same time. Thus the velocity vector from the turbine inlet guide vanes will change, unless the change is compensated for by movement of the vanes. The duration curve of the Atlas Copco variable inlet guide vane radial turbine is shown on Figure 9. FIGURE 9: Turbine isentropic efficiency duration curves for cogenerationPDF Image | Medium-Enthalpy Geothermal Resources and Financial Aspects
