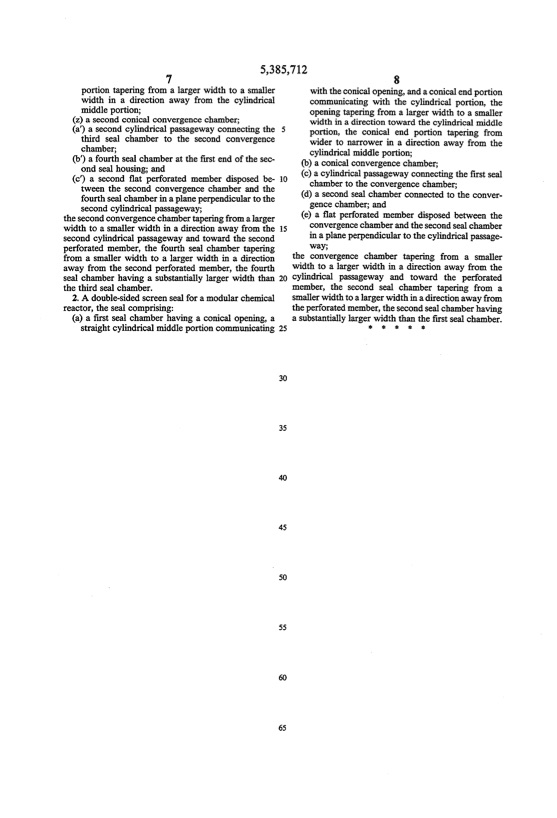

5,385,712 78 portion tapering from a larger width to a smaller width in a direction away from the cylindrical middleportion; (2) a second conical convergence chamber; (a’) a second cylindrical passageway connecting the third seal chamber to the second convergence chamber; (b') a fourth seal chamber at the ?rst end of the sec ond seal housing; and (c’) a second ?at perforated member disposed be tween the second convergence chamber and the fourth seal chamber in a plane perpendicular to the second cylindrical passageway; thesecondconvergencechambertaperingfromalarger width to a smaller width in a direction away from the 15 second cylindrical passageway and toward the second perforated member, the fourth seal chamber tapering from a smaller width to a larger width in a direction away from the second perforated member, the fourth seal chamber having a substantially larger width than 20 thethirdsealchamber. 2.A double-sidedscreensealforamodularchemical reactor,thesealcomprising: (a) a ?rst seal chamber having a conical opening, a straightcylindricalmiddleportioncommunicating 25 30 35 45 50 55 65 withtheconicalopening,andaconicalendportion communicating with the cylindrical portion, the opening tapering from a larger width to a smaller width in a direction toward the cylindrical middle portion, the conical end portion tapering from wider to narrower in a direction away from the cylindricalmiddleportion; (b) a conical convergence chamber; (0) a cylindrical passageway connecting the ?rst seal chamber to the convergence chamber; (1)a second seal chamber connected to the conver gence chamber; and (e) a ?at perforated member disposed between the convergencechamberandthesecondsealchamber inaplaneperpendiculartothecylindricalpassage Way; the convergence chamber tapering from a smaller width to a larger width in a direction away from the cylindrical passageway and toward the perforated member, the second seal chamber tapering from a smallerwidthtoalargerwidthinadirectionaway from theperforatedmember,thesecondsealchamberhaving asubstantiallylargerwidththanthe?rstsealchamber. * ,1! t # I3PDF Image | MODULAR CHEMICAL REACTOR
