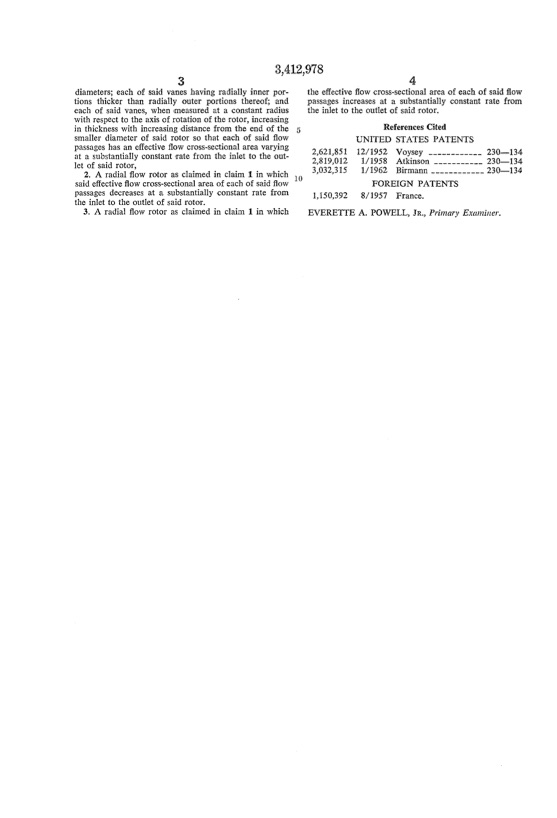

Text from PDF Page: 004
3,412,978 34 diameters; each of said vanes having radially inner por tions thicker than radially outer portions thereof; and each of said vanes, when ‘measured at a constant radius with respect to the axis of rotation of the rotor, increasing inthicknesswithincreasingdistancefromtheendofthe C1 smaller diameter of said rotor so that each of said flow passages has an effective ?ow cross-sectional area varying at a substantially constant rate from the inlet to the out let of said rotor, 2. A radial ?ow rotor as claimed in claim 1 in which saidellective?ow cross-sectionalareaofeachofsaid?ow passages decreases at a substantially constant rate from the inlet to the outlet of said rotor. 3. A radial ?ow rotor as claimed in claim 1 in which the effective ?ow cross-sectional area of each of said flow passages increases at a substantially constant rate from the inlet to the outlet of said rotor. References Cited UNITED STATES PATENTS 2,621,851 12/1952 Voysey ____________ 230-134 2,819,012 1/1958 Atkinson ___________ 230—134 3,032,315 1/1962‘ Birrnann ____________ 230—134 FOREIGN PATENTS 10 1,150,392 8/1957 France. EVERETTE A. POWELL, JR., Primary Examiner.PDF Image | RADIAL FLOW TURBINE OR COMPRESSOR ROTOR
