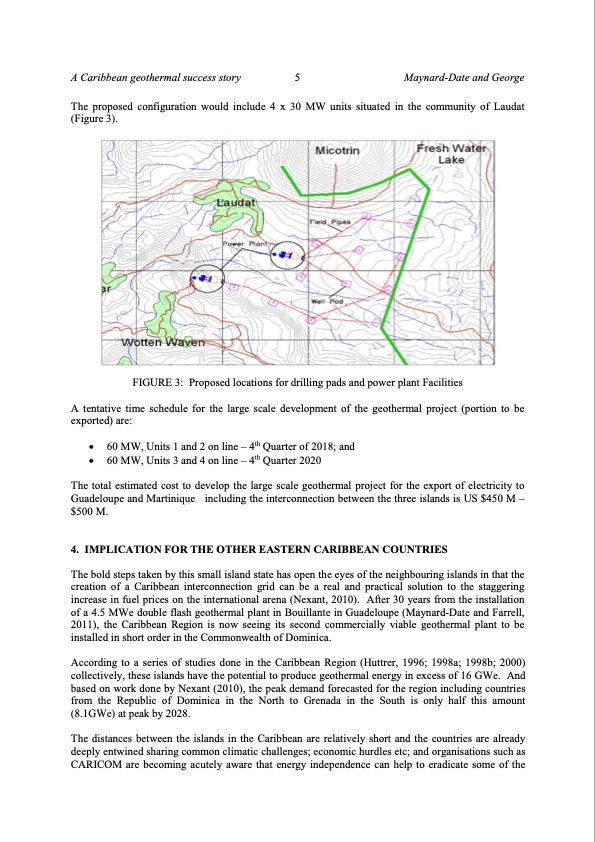

A Caribbean geothermal success story 5 Maynard-Date and George The proposed configuration would include 4 x 30 MW units situated in the community of Laudat (Figure 3). A tentative time schedule for the large scale development of the geothermal project (portion to be exported) are: • 60 MW, Units 1 and 2 on line – 4th Quarter of 2018; and • 60 MW, Units 3 and 4 on line – 4th Quarter 2020 The total estimated cost to develop the large scale geothermal project for the export of electricity to Guadeloupe and Martinique including the interconnection between the three islands is US $450 M – $500 M. 4. IMPLICATION FOR THE OTHER EASTERN CARIBBEAN COUNTRIES The bold steps taken by this small island state has open the eyes of the neighbouring islands in that the creation of a Caribbean interconnection grid can be a real and practical solution to the staggering increase in fuel prices on the international arena (Nexant, 2010). After 30 years from the installation of a 4.5 MWe double flash geothermal plant in Bouillante in Guadeloupe (Maynard-Date and Farrell, 2011), the Caribbean Region is now seeing its second commercially viable geothermal plant to be installed in short order in the Commonwealth of Dominica. According to a series of studies done in the Caribbean Region (Huttrer, 1996; 1998a; 1998b; 2000) collectively, these islands have the potential to produce geothermal energy in excess of 16 GWe. And based on work done by Nexant (2010), the peak demand forecasted for the region including countries from the Republic of Dominica in the North to Grenada in the South is only half this amount (8.1GWe) at peak by 2028. The distances between the islands in the Caribbean are relatively short and the countries are already deeply entwined sharing common climatic challenges; economic hurdles etc; and organisations such as CARICOM are becoming acutely aware that energy independence can help to eradicate some of the FIGURE 3: Proposed locations for drilling pads and power plant FacilitiesPDF Image | Utilization of Low- and Medium-Enthalpy Geothermal
