PDF Publication Title:
Text from PDF Page: 032

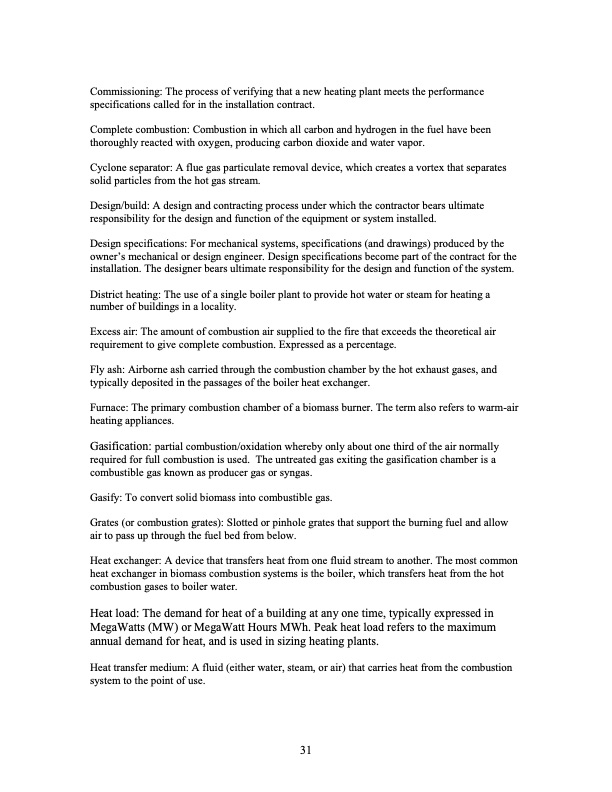

Commissioning: The process of verifying that a new heating plant meets the performance specifications called for in the installation contract. Complete combustion: Combustion in which all carbon and hydrogen in the fuel have been thoroughly reacted with oxygen, producing carbon dioxide and water vapor. Cyclone separator: A flue gas particulate removal device, which creates a vortex that separates solid particles from the hot gas stream. Design/build: A design and contracting process under which the contractor bears ultimate responsibility for the design and function of the equipment or system installed. Design specifications: For mechanical systems, specifications (and drawings) produced by the owner’s mechanical or design engineer. Design specifications become part of the contract for the installation. The designer bears ultimate responsibility for the design and function of the system. District heating: The use of a single boiler plant to provide hot water or steam for heating a number of buildings in a locality. Excess air: The amount of combustion air supplied to the fire that exceeds the theoretical air requirement to give complete combustion. Expressed as a percentage. Fly ash: Airborne ash carried through the combustion chamber by the hot exhaust gases, and typically deposited in the passages of the boiler heat exchanger. Furnace: The primary combustion chamber of a biomass burner. The term also refers to warm-air heating appliances. Gasification: partial combustion/oxidation whereby only about one third of the air normally required for full combustion is used. The untreated gas exiting the gasification chamber is a combustible gas known as producer gas or syngas. Gasify: To convert solid biomass into combustible gas. Grates (or combustion grates): Slotted or pinhole grates that support the burning fuel and allow air to pass up through the fuel bed from below. Heat exchanger: A device that transfers heat from one fluid stream to another. The most common heat exchanger in biomass combustion systems is the boiler, which transfers heat from the hot combustion gases to boiler water. Heat load: The demand for heat of a building at any one time, typically expressed in MegaWatts (MW) or MegaWatt Hours MWh. Peak heat load refers to the maximum annual demand for heat, and is used in sizing heating plants. Heat transfer medium: A fluid (either water, steam, or air) that carries heat from the combustion system to the point of use. 31PDF Image | Evaluation of Commercially Available Small Scale Biomass Electrical Generation Technologies Appropriate to the Yukon
PDF Search Title:
Evaluation of Commercially Available Small Scale Biomass Electrical Generation Technologies Appropriate to the YukonOriginal File Name Searched:
yukon_chp_evaluation_report_final_march_29_2014.pdfDIY PDF Search: Google It | Yahoo | Bing
