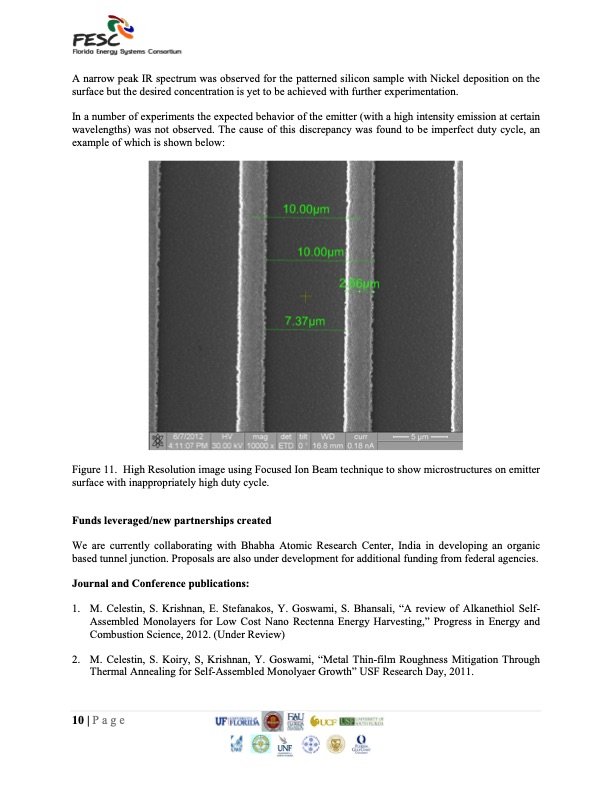

A narrow peak IR spectrum was observed for the patterned silicon sample with Nickel deposition on the surface but the desired concentration is yet to be achieved with further experimentation. In a number of experiments the expected behavior of the emitter (with a high intensity emission at certain wavelengths) was not observed. The cause of this discrepancy was found to be imperfect duty cycle, an example of which is shown below: Figure 11. High Resolution image using Focused Ion Beam technique to show microstructures on emitter surface with inappropriately high duty cycle. Funds leveraged/new partnerships created We are currently collaborating with Bhabha Atomic Research Center, India in developing an organic based tunnel junction. Proposals are also under development for additional funding from federal agencies. Journal and Conference publications: 1. M. Celestin, S. Krishnan, E. Stefanakos, Y. Goswami, S. Bhansali, “A review of Alkanethiol Self- Assembled Monolayers for Low Cost Nano Rectenna Energy Harvesting,” Progress in Energy and Combustion Science, 2012. (Under Review) 2. M. Celestin, S. Koiry, S, Krishnan, Y. Goswami, “Metal Thin-film Roughness Mitigation Through Thermal Annealing for Self-Assembled Monolyaer Growth” USF Research Day, 2011. 10 | P a g ePDF Image | FESC Research, Education and Outreach Project
