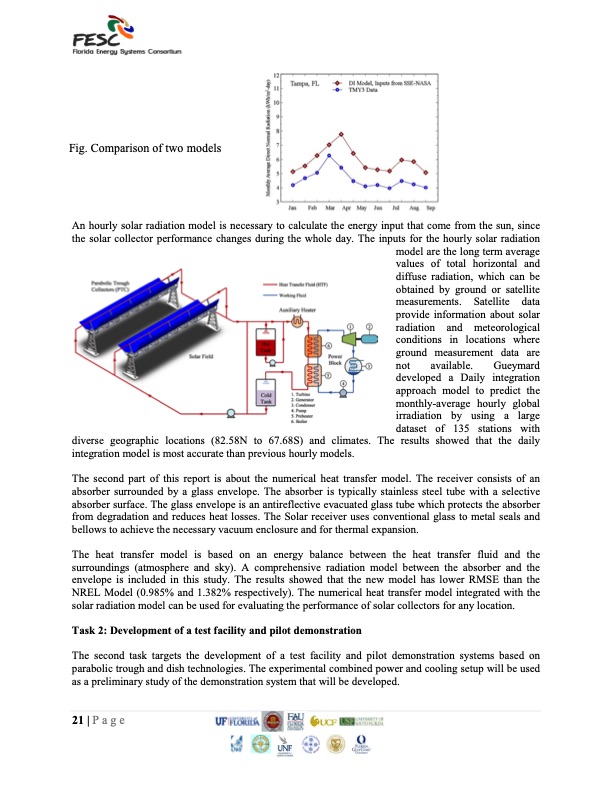

Fig. Comparison of two models An hourly solar radiation model is necessary to calculate the energy input that come from the sun, since the solar collector performance changes during the whole day. The inputs for the hourly solar radiation model are the long term average values of total horizontal and diffuse radiation, which can be obtained by ground or satellite measurements. Satellite data provide information about solar radiation and meteorological conditions in locations where ground measurement data are not available. Gueymard developed a Daily integration approach model to predict the monthly-average hourly global irradiation by using a large dataset of 135 stations with diverse geographic locations (82.58N to 67.68S) and climates. The results showed that the daily integration model is most accurate than previous hourly models. The second part of this report is about the numerical heat transfer model. The receiver consists of an absorber surrounded by a glass envelope. The absorber is typically stainless steel tube with a selective absorber surface. The glass envelope is an antireflective evacuated glass tube which protects the absorber from degradation and reduces heat losses. The Solar receiver uses conventional glass to metal seals and bellows to achieve the necessary vacuum enclosure and for thermal expansion. The heat transfer model is based on an energy balance between the heat transfer fluid and the surroundings (atmosphere and sky). A comprehensive radiation model between the absorber and the envelope is included in this study. The results showed that the new model has lower RMSE than the NREL Model (0.985% and 1.382% respectively). The numerical heat transfer model integrated with the solar radiation model can be used for evaluating the performance of solar collectors for any location. Task 2: Development of a test facility and pilot demonstration The second task targets the development of a test facility and pilot demonstration systems based on parabolic trough and dish technologies. The experimental combined power and cooling setup will be used as a preliminary study of the demonstration system that will be developed. 21 | P a g ePDF Image | FESC Research, Education and Outreach Project
