PDF Publication Title:
Text from PDF Page: 025

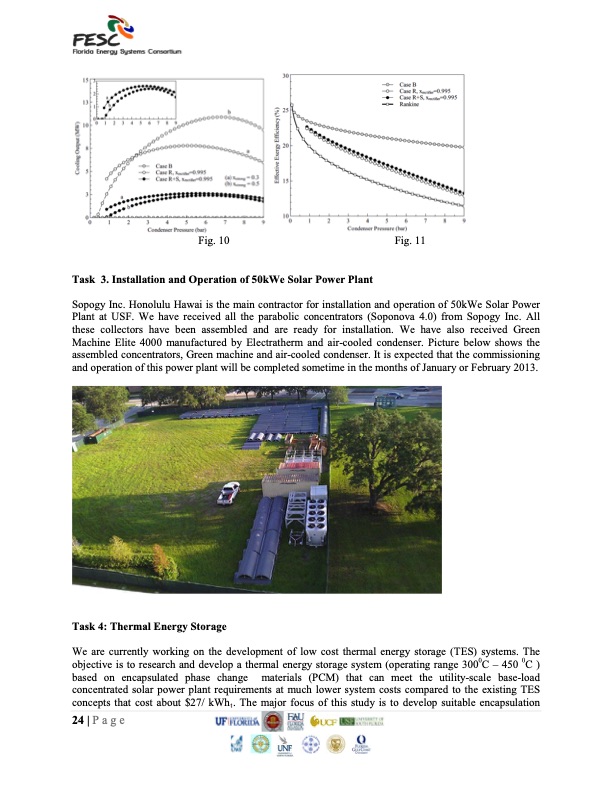

Fig. 10 Fig. 11 Task 3. Installation and Operation of 50kWe Solar Power Plant Sopogy Inc. Honolulu Hawai is the main contractor for installation and operation of 50kWe Solar Power Plant at USF. We have received all the parabolic concentrators (Soponova 4.0) from Sopogy Inc. All these collectors have been assembled and are ready for installation. We have also received Green Machine Elite 4000 manufactured by Electratherm and air-cooled condenser. Picture below shows the assembled concentrators, Green machine and air-cooled condenser. It is expected that the commissioning and operation of this power plant will be completed sometime in the months of January or February 2013. Task 4: Thermal Energy Storage We are currently working on the development of low cost thermal energy storage (TES) systems. The objective is to research and develop a thermal energy storage system (operating range 3000C – 450 0C ) based on encapsulated phase change materials (PCM) that can meet the utility-scale base-load concentrated solar power plant requirements at much lower system costs compared to the existing TES concepts that cost about $27/ kWht. The major focus of this study is to develop suitable encapsulation 24 | P a g ePDF Image | FESC Research, Education and Outreach Project
PDF Search Title:
FESC Research, Education and Outreach ProjectOriginal File Name Searched:
USF_Project_Reports_Nov_2012_Part11.pdfDIY PDF Search: Google It | Yahoo | Bing
