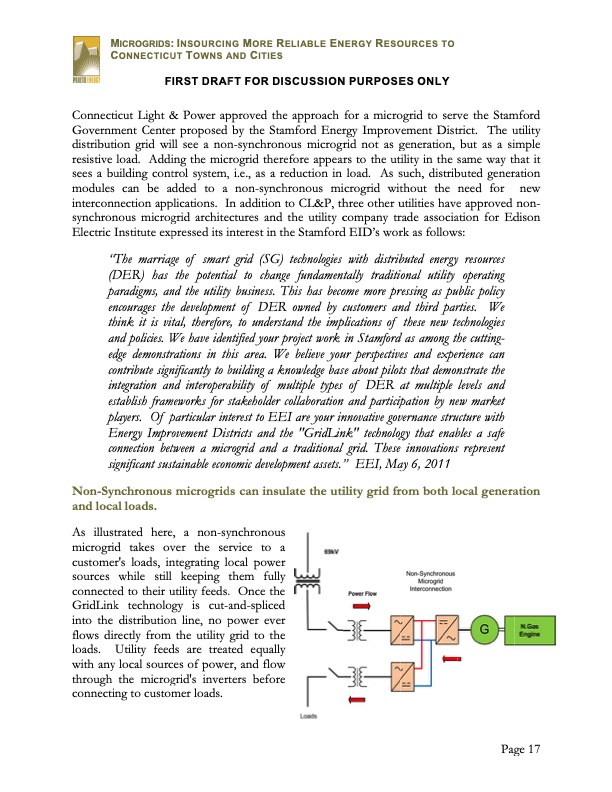

MICROGRIDS: INSOURCING MORE RELIABLE ENERGY RESOURCES TO CONNECTICUT TOWNS AND CITIES FIRST DRAFT FOR DISCUSSION PURPOSES ONLY Connecticut Light & Power approved the approach for a microgrid to serve the Stamford Government Center proposed by the Stamford Energy Improvement District. The utility distribution grid will see a non-synchronous microgrid not as generation, but as a simple resistive load. Adding the microgrid therefore appears to the utility in the same way that it sees a building control system, i.e., as a reduction in load. As such, distributed generation modules can be added to a non-synchronous microgrid without the need for new interconnection applications. In addition to CL&P, three other utilities have approved non- synchronous microgrid architectures and the utility company trade association for Edison Electric Institute expressed its interest in the Stamford EID’s work as follows: “The marriage of smart grid (SG) technologies with distributed energy resources (DER) has the potential to change fundamentally traditional utility operating paradigms, and the utility business. This has become more pressing as public policy encourages the development of DER owned by customers and third parties. We think it is vital, therefore, to understand the implications of these new technologies and policies. We have identified your project work in Stamford as among the cutting- edge demonstrations in this area. We believe your perspectives and experience can contribute significantly to building a knowledge base about pilots that demonstrate the integration and interoperability of multiple types of DER at multiple levels and establish frameworks for stakeholder collaboration and participation by new market players. Of particular interest to EEI are your innovative governance structure with Energy Improvement Districts and the "GridLink" technology that enables a safe connection between a microgrid and a traditional grid. These innovations represent significant sustainable economic development assets.” EEI, May 6, 2011 Non-Synchronous microgrids can insulate the utility grid from both local generation and local loads. As illustrated here, a non-synchronous microgrid takes over the service to a customer's loads, integrating local power sources while still keeping them fully connected to their utility feeds. Once the GridLink technology is cut-and-spliced into the distribution line, no power ever flows directly from the utility grid to the loads. Utility feeds are treated equally with any local sources of power, and flow through the microgrid's inverters before connecting to customer loads. Page 17PDF Image | MICROGRIDS
