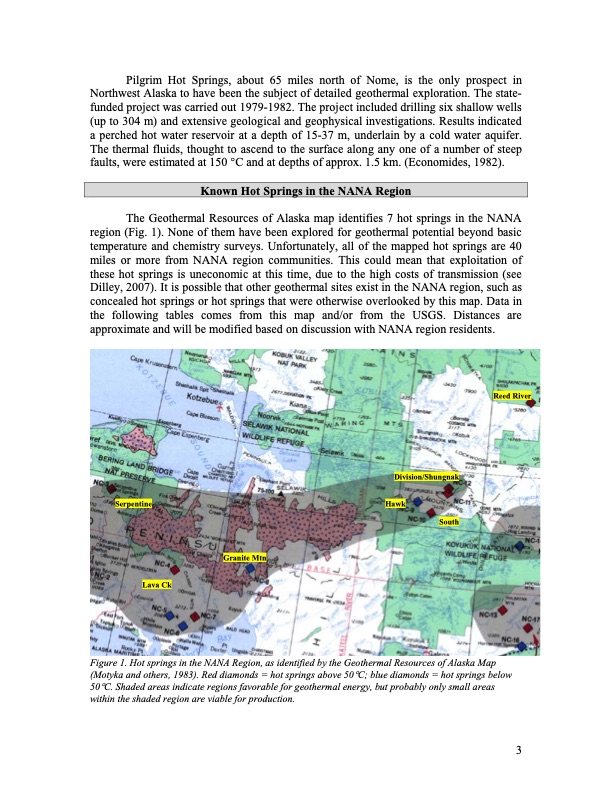

Pilgrim Hot Springs, about 65 miles north of Nome, is the only prospect in Northwest Alaska to have been the subject of detailed geothermal exploration. The state- funded project was carried out 1979-1982. The project included drilling six shallow wells (up to 304 m) and extensive geological and geophysical investigations. Results indicated a perched hot water reservoir at a depth of 15-37 m, underlain by a cold water aquifer. The thermal fluids, thought to ascend to the surface along any one of a number of steep faults, were estimated at 150 °C and at depths of approx. 1.5 km. (Economides, 1982). Known Hot Springs in the NANA Region The Geothermal Resources of Alaska map identifies 7 hot springs in the NANA region (Fig. 1). None of them have been explored for geothermal potential beyond basic temperature and chemistry surveys. Unfortunately, all of the mapped hot springs are 40 miles or more from NANA region communities. This could mean that exploitation of these hot springs is uneconomic at this time, due to the high costs of transmission (see Dilley, 2007). It is possible that other geothermal sites exist in the NANA region, such as concealed hot springs or hot springs that were otherwise overlooked by this map. Data in the following tables comes from this map and/or from the USGS. Distances are approximate and will be modified based on discussion with NANA region residents. Reed River Serpentine Lava Ck Division/Shungnak Hawk South Granite Mtn Figure 1. Hot springs in the NANA Region, as identified by the Geothermal Resources of Alaska Map (Motyka and others, 1983). Red diamonds = hot springs above 50°C; blue diamonds = hot springs below 50°C. Shaded areas indicate regions favorable for geothermal energy, but probably only small areas within the shaded region are viable for production. 3PDF Image | NANA Geothermal Assessment Project (GAP) Results
