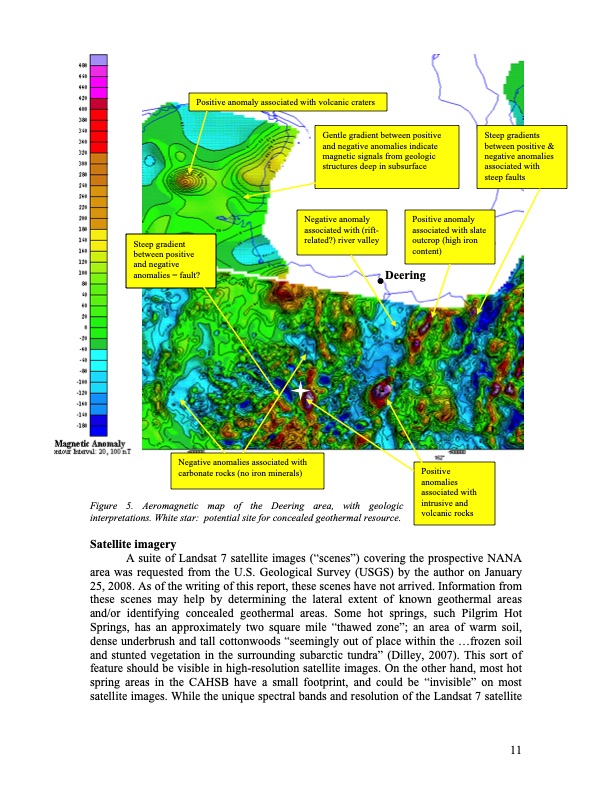

Positive anomaly associated with volcanic craters Gentle gradient between positive and negative anomalies indicate magnetic signals from geologic structures deep in subsurface Steep gradients between positive & negative anomalies associated with steep faults Negative anomaly associated with (rift- related?) river valley Positive anomaly associated with slate outcrop (high iron content) Steep gradient between positive and negative anomalies = fault? Deering Negative anomalies associated with carbonate rocks (no iron minerals) Figure 5. Aeromagnetic map of the Deering area, with geologic interpretations. White star: potential site for concealed geothermal resource. Satellite imagery A suite of Landsat 7 satellite images (“scenes”) covering the prospective NANA area was requested from the U.S. Geological Survey (USGS) by the author on January 25, 2008. As of the writing of this report, these scenes have not arrived. Information from these scenes may help by determining the lateral extent of known geothermal areas and/or identifying concealed geothermal areas. Some hot springs, such Pilgrim Hot Springs, has an approximately two square mile “thawed zone”; an area of warm soil, dense underbrush and tall cottonwoods “seemingly out of place within the ...frozen soil and stunted vegetation in the surrounding subarctic tundra” (Dilley, 2007). This sort of feature should be visible in high-resolution satellite images. On the other hand, most hot spring areas in the CAHSB have a small footprint, and could be “invisible” on most satellite images. While the unique spectral bands and resolution of the Landsat 7 satellite Positive anomalies associated with intrusive and volcanic rocks 11PDF Image | NANA Geothermal Assessment Project (GAP) Results
