Text from PDF Page: 024

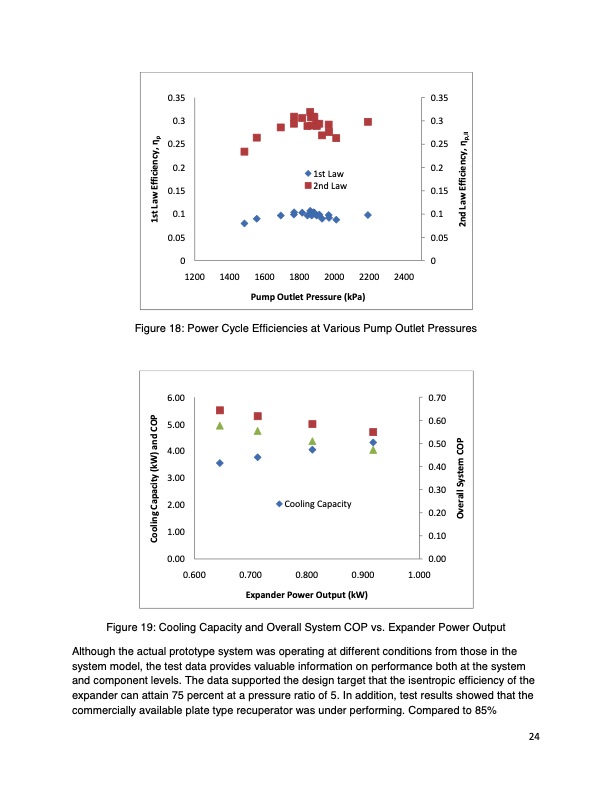

0.35 0.3 0.25 0.35 0.3 0.25 0.2 1st Law 0.2 0.15 2nd Law 0.15 0.1 0.05 0.1 0.05 00 1200 1400 1600 1800 2000 2200 2400 Pump Outlet Pressure (kPa) Figure 18: Power Cycle Efficiencies at Various Pump Outlet Pressures 6.00 5.00 4.00 3.00 2.00 1.00 0.00 0.600 0.700 Cooling Capacity 0.800 0.900 0.70 0.60 0.50 0.40 0.30 0.20 0.10 0.00 1.000 Expander Power Output (kW) Figure 19: Cooling Capacity and Overall System COP vs. Expander Power Output Although the actual prototype system was operating at different conditions from those in the system model, the test data provides valuable information on performance both at the system and component levels. The data supported the design target that the isentropic efficiency of the expander can attain 75 percent at a pressure ratio of 5. In addition, test results showed that the commercially available plate type recuperator was under performing. Compared to 85% 24 Cooling Capacity (kW) and COP 1st Law Efficiency, ηp Overall System COP 2nd Law Efficiency, ηp,IIPDF Image | Performance of a Combined Organic Rankine Cycle
