Text from PDF Page: 026

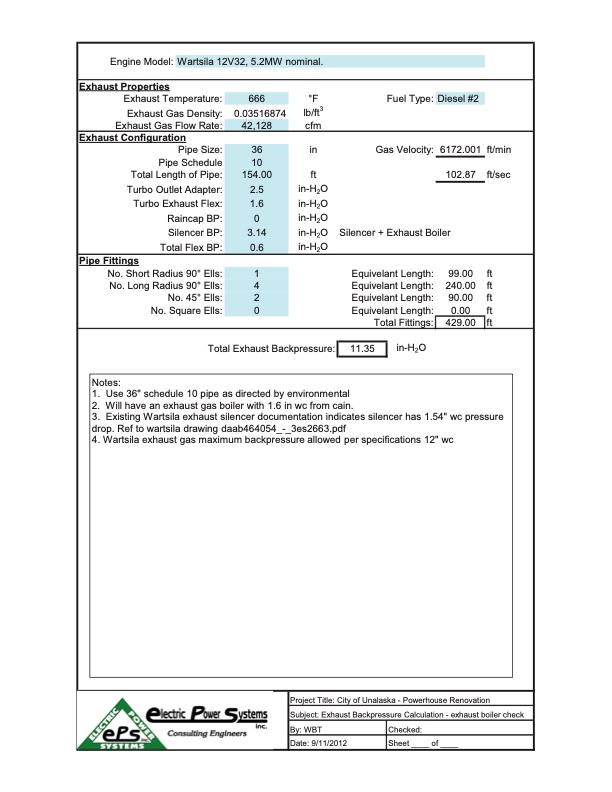

Engine Model: Wartsila 12V32, 5.2MW nominal. Exhaust Properties Exhaust Temperature: 666 °F Fuel Type: Diesel #2 Exhaust Gas Density: Exhaust Gas Flow Rate: 0.03516874 lb/ft3 cfm 42,128 Exhaust Configuration Pipe Size: Pipe Schedule T otal Length of Pipe: Turbo Outlet Adapter: Turbo Exhaust Flex: Raincap BP: Silencer BP: T otal Flex BP: in ft in-H2O in-H2O in-H2O in-H2O in-H2O Gas Velocity: 6172.001 ft/min 102.87 ft/sec Silencer + Exhaust Boiler 36 10 154.00 2.5 1.6 0 3.14 0.6 Pipe Fittings No. Short Radius 90° Ells: No. Long Radius 90° Ells: No. 45° Ells: No. Square Ells: Equivelant Length: Equivelant Length: Equivelant Length: Equivelant Length: Total Fittings: 99.00 ft 240.00 ft 90.00 ft 0.00 ft 429.00 ft 1 4 2 0 Total Exhaust Backpressure: 11.35 in-H2O Notes: 1. Use 36" schedule 10 pipe as directed by environmental 2. Will have an exhaust gas boiler with 1.6 in wc from cain. 3. Existing Wartsila exhaust silencer documentation indicates silencer has 1.54" wc pressure drop. Ref to wartsila drawing daab464054_-_3es2663.pdf 4. Wartsila exhaust gas maximum backpressure allowed per specifications 12" wc Project Title: City of Unalaska - Powerhouse Renovation Subject: Exhaust Backpressure Calculation - exhaust boiler check By: WBT Checked: Date: 9/11/2012 Sheet ____ of ____PDF Image | Powerhouse Exhaust Gas Waste Heat to Energy Project
