Text from PDF Page: 049

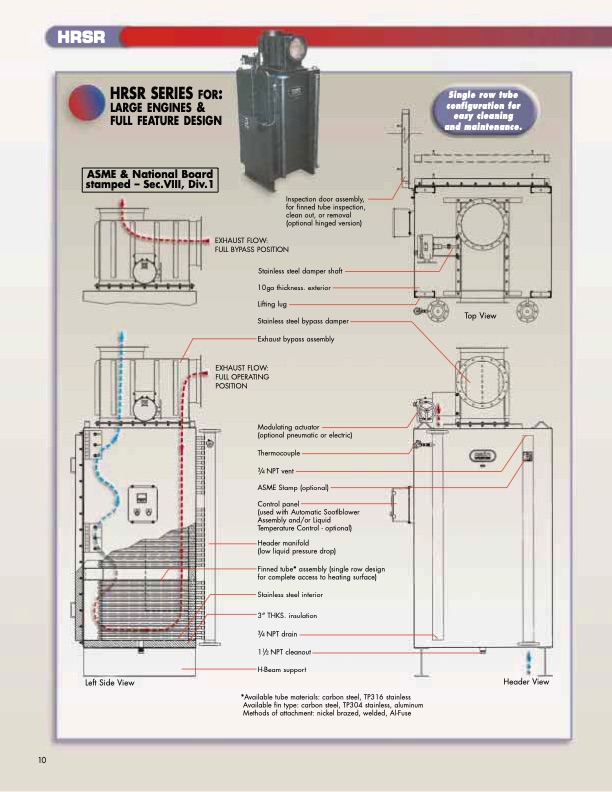

HRSR HRSR SERIES FOR: LARGE ENGINES & FULL FEATURE DESIGN Single row tube configuration for easy cleaning and maintenance. Inspection door assembly, for finned tube inspection, clean out, or removal (optional hinged version) EXHAUST FLOW: FULL BYPASS POSITION Stainless steel damper shaft 10ga thickness. exterior Lifting lug Stainless steel bypass damper Exhaust bypass assembly EXHAUST FLOW: FULL OPERATING POSITION Modulating actuator (optional pneumatic or electric) Thermocouple 3/4 NPT vent ASME Stamp (optional) Control panel (used with Automatic Sootlblower Assembly and/or Liquid Temperature Control - optional) Header manifold (low liquid pressure drop) Finned tube* assembly (single row design for complete access to heating surface) Stainless steel interior 3” THKS. insulation 3/4 NPT drain 11/2 NPT cleanout H-Beam support *Available tube materials: carbon steel, TP316 stainless Available fin type: carbon steel, TP304 stainless, aluminum Methods of attachment: nickel brazed, welded, Al-Fuse Top View 10 ASME & National Board stamped – Sec.VIII, Div.1 Left Side View Header ViewPDF Image | Powerhouse Exhaust Gas Waste Heat to Energy Project
