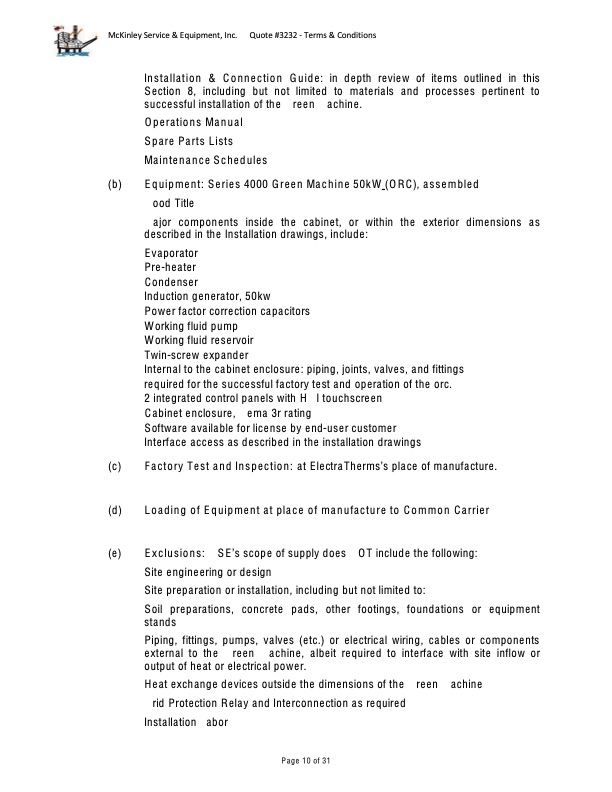

McKinley Service & Equipment, Inc. Quote #3232 - Terms & Conditions Installation & Connection Guide: in depth review of items outlined in this Section 8, including but not limited to materials and processes pertinent to successful installation of the reen achine. Operations Manual Spare Parts Lists Maintenance Schedules (b) Equipment: Series 4000 Green Machine 50kW (ORC), assembled ood Title ajor components inside the cabinet, or within the exterior dimensions as described in the Installation drawings, include: Evaporator Pre-heater Condenser Induction generator, 50kw Power factor correction capacitors Working fluid pump Working fluid reservoir Twin-screw expander Internal to the cabinet enclosure: piping, joints, valves, and fittings required for the successful factory test and operation of the orc. 2 integrated control panels with H I touchscreen Cabinet enclosure, ema 3r rating Software available for license by end-user customer Interface access as described in the installation drawings (c) Factory Test and Inspection: at ElectraTherms’s place of manufacture. (d) Loading of Equipment at place of manufacture to Common Carrier (e) Exclusions: SE’s scope of supply does OT include the following: Site engineering or design Site preparation or installation, including but not limited to: Soil preparations, concrete pads, other footings, foundations or equipment stands Piping, fittings, pumps, valves (etc.) or electrical wiring, cables or components external to the reen achine, albeit required to interface with site inflow or output of heat or electrical power. Heat exchange devices outside the dimensions of the reen achine rid Protection Relay and Interconnection as required Installation abor Page 10 of 31PDF Image | Powerhouse Exhaust Gas Waste Heat to Energy Project
