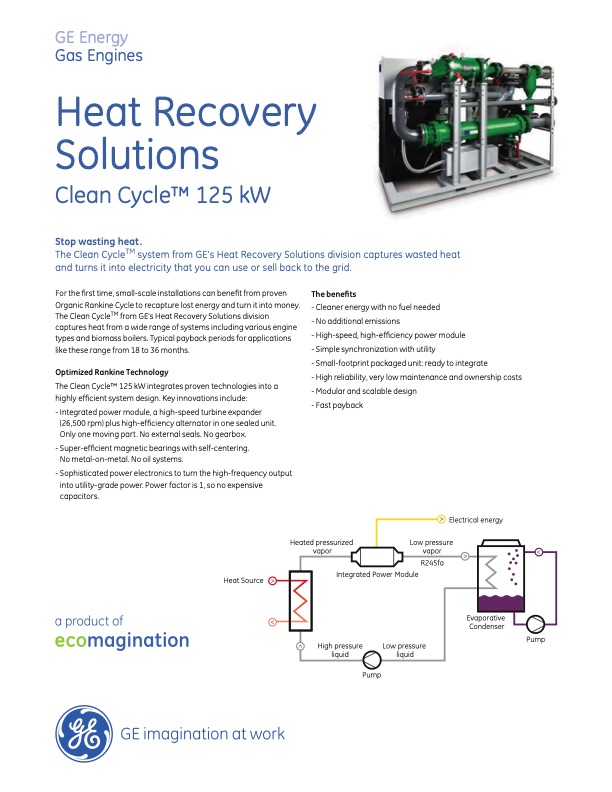

GE Energy Gas Engines Heat Recovery Solutions Clean CycleTM 125 kW Stop wasting heat. The Clean CycleTM system from GE’s Heat Recovery Solutions division captures wasted heat and turns it into electricity that you can use or sell back to the grid. For the first time, small-scale installations can benefit from proven Organic Rankine Cycle to recapture lost energy and turn it into money. The Clean CycleTM from GE’s Heat Recovery Solutions division captures heat from a wide range of systems including various engine types and biomass boilers. Typical payback periods for applications like these range from 18 to 36 months. Optimized Rankine Technology The Clean CycleTM 125 kW integrates proven technologies into a highly efficient system design. Key innovations include: - Integrated power module, a high-speed turbine expander (26,500 rpm) plus high-efficiency alternator in one sealed unit. Only one moving part. No external seals. No gearbox. - Super-efficient magnetic bearings with self-centering. No metal-on-metal. No oil systems. - Sophisticated power electronics to turn the high-frequency output into utility-grade power. Power factor is 1, so no expensive capacitors. The benefits - Cleaner energy with no fuel needed - No additional emissions - High-speed, high-efficiency power module - Simple synchronization with utility - Small-footprint packaged unit: ready to integrate - High reliability, very low maintenance and ownership costs - Modular and scalable design - Fast payback Electrical energy Heated pressurized vapor Low pressure vapor Heat Source Integrated Power Module R245fa High pressure liquid Pump Low pressure liquid Pump Evaporative CondenserPDF Image | Powerhouse Exhaust Gas Waste Heat to Energy Project
