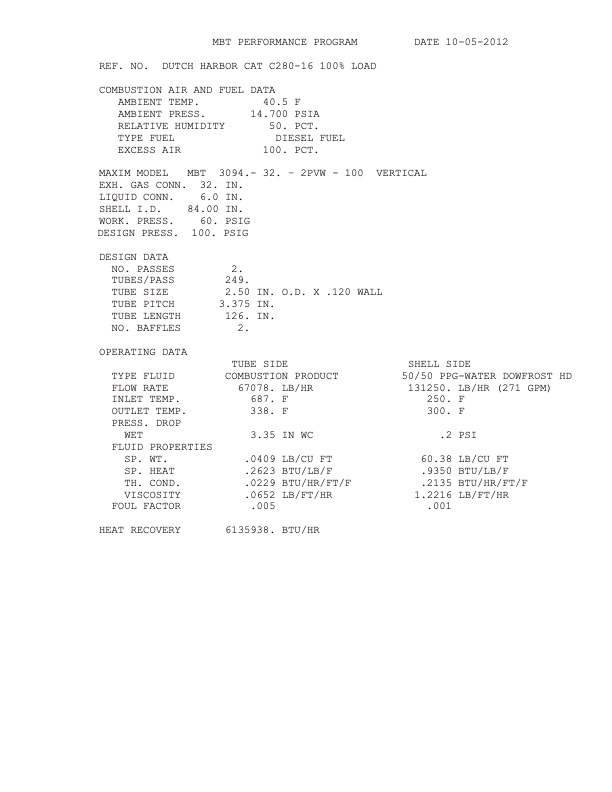

MBT PERFORMANCE PROGRAM REF. NO. DUTCH HARBOR CAT C280-16 100% LOAD COMBUSTION AIR AND FUEL DATA DATE 10-05-2012 AMBIENT TEMP. AMBIENT PRESS. RELATIVE HUMIDITY TYPE FUEL EXCESS AIR 40.5 F 14.700 PSIA 50. PCT. DIESEL FUEL 100. PCT. MAXIM MODEL MBT 3094.- 32. – 2PVW - 100 VERTICAL EXH. GAS CONN. 32. IN. LIQUID CONN. SHELL I.D. WORK. PRESS. 6.0 IN. 84.00 IN. 60. PSIG DESIGN PRESS. 100. PSIG DESIGN DATA NO. PASSES TUBES/PASS TUBE SIZE TUBE PITCH TUBE LENGTH NO. BAFFLES OPERATING DATA TYPE FLUID FLOW RATE INLET TEMP. OUTLET TEMP. PRESS. DROP WET FLUID PROPERTIES SP. WT. SP. HEAT TH. COND. VISCOSITY FOUL FACTOR HEAT RECOVERY 2. 249. 2.50 IN. O.D. X .120 WALL 3.375 IN. 126. IN. 2. TUBE SIDE COMBUSTION PRODUCT 67078. LB/HR 687. F 338. F 3.35 INWC .2 .0409 LB/CU FT .2623 BTU/LB/F .0229 BTU/HR/FT/F .0652 LB/FT/HR .005 6135938. BTU/HR 60.38 .9350 .2135 1.2216 .001 SHELL SIDE 50/50 PPG-WATER DOWFROST HD LB/HR (271 GPM) F F PSI LB/CU FT BTU/LB/F BTU/HR/FT/F LB/FT/HR 131250. 250. 300.PDF Image | Powerhouse Exhaust Gas Waste Heat to Energy Project
