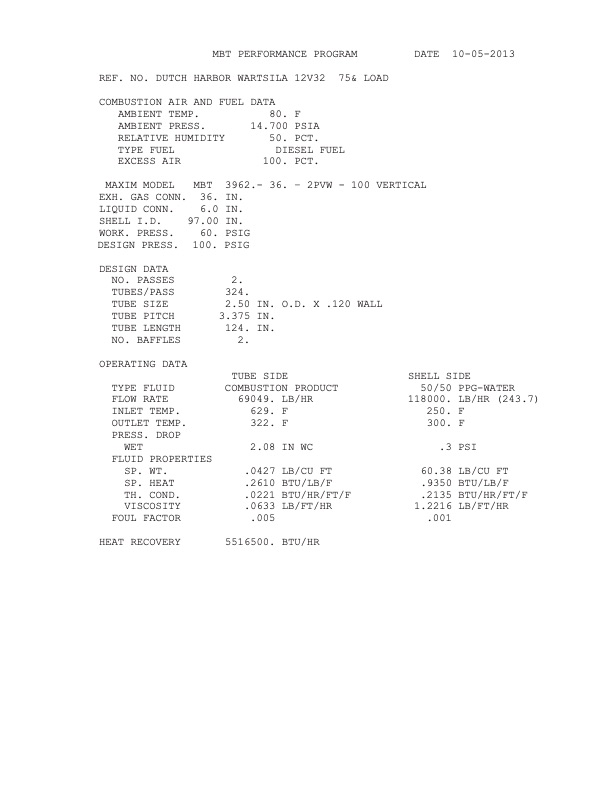

MBT PERFORMANCE PROGRAM REF. NO. DUTCH HARBOR WARTSILA 12V32 75& LOAD COMBUSTION AIR AND FUEL DATA DATE 10-05-2013 AMBIENT TEMP. AMBIENT PRESS. RELATIVE HUMIDITY TYPE FUEL EXCESS AIR MAXIM MODEL EXH. GAS CONN. 36. IN. 80. F 14.700 PSIA 50. PCT. DIESEL FUEL 100. PCT. LIQUID CONN. SHELL I.D. WORK. PRESS. 6.0 IN. 97.00 IN. 60. PSIG DESIGN PRESS. 100. PSIG DESIGN DATA NO. PASSES TUBES/PASS TUBE SIZE TUBE PITCH TUBE LENGTH NO. BAFFLES OPERATING DATA TYPE FLUID FLOW RATE INLET TEMP. OUTLET TEMP. PRESS. DROP WET FLUID PROPERTIES SP. WT. SP. HEAT TH. COND. VISCOSITY FOUL FACTOR HEAT RECOVERY 2. 324. 2.50 IN. O.D. X .120 WALL 3.375 IN. 124. IN. 2. TUBE SIDE COMBUSTION PRODUCT 69049. LB/HR 629. F SHELL SIDE MBT 3962.- 36. – 2PVW - 100 VERTICAL 322. F 2.08 INWC .3 .0427 LB/CU FT .2610 BTU/LB/F .0221 BTU/HR/FT/F .0633 LB/FT/HR .005 5516500. BTU/HR 60.38 .9350 .2135 1.2216 .001 50/50 118000. 250. 300. PPG-WATER LB/HR (243.7) F F PSI LB/CU FT BTU/LB/F BTU/HR/FT/F LB/FT/HRPDF Image | Powerhouse Exhaust Gas Waste Heat to Energy Project
