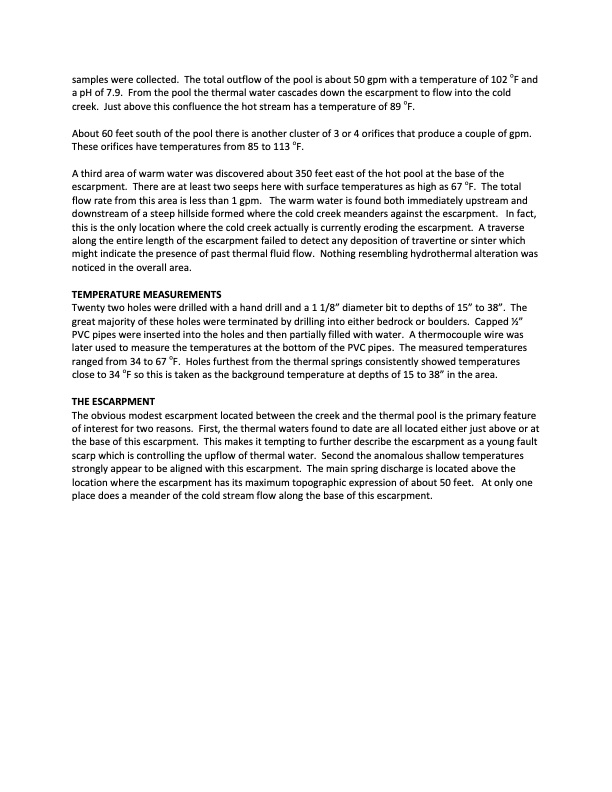

samples were collected. The total outflow of the pool is about 50 gpm with a temperature of 102 oF and a pH of 7.9. From the pool the thermal water cascades down the escarpment to flow into the cold creek. Just above this confluence the hot stream has a temperature of 89 oF. About 60 feet south of the pool there is another cluster of 3 or 4 orifices that produce a couple of gpm. These orifices have temperatures from 85 to 113 oF. A third area of warm water was discovered about 350 feet east of the hot pool at the base of the escarpment. There are at least two seeps here with surface temperatures as high as 67 oF. The total flow rate from this area is less than 1 gpm. The warm water is found both immediately upstream and downstream of a steep hillside formed where the cold creek meanders against the escarpment. In fact, this is the only location where the cold creek actually is currently eroding the escarpment. A traverse along the entire length of the escarpment failed to detect any deposition of travertine or sinter which might indicate the presence of past thermal fluid flow. Nothing resembling hydrothermal alteration was noticed in the overall area. TEMPERATURE MEASUREMENTS Twenty two holes were drilled with a hand drill and a 1 1/8” diameter bit to depths of 15” to 38”. The great majority of these holes were terminated by drilling into either bedrock or boulders. Capped 1⁄2” PVC pipes were inserted into the holes and then partially filled with water. A thermocouple wire was later used to measure the temperatures at the bottom of the PVC pipes. The measured temperatures ranged from 34 to 67 oF. Holes furthest from the thermal springs consistently showed temperatures close to 34 oF so this is taken as the background temperature at depths of 15 to 38” in the area. THE ESCARPMENT The obvious modest escarpment located between the creek and the thermal pool is the primary feature of interest for two reasons. First, the thermal waters found to date are all located either just above or at the base of this escarpment. This makes it tempting to further describe the escarpment as a young fault scarp which is controlling the upflow of thermal water. Second the anomalous shallow temperatures strongly appear to be aligned with this escarpment. The main spring discharge is located above the location where the escarpment has its maximum topographic expression of about 50 feet. At only one place does a meander of the cold stream flow along the base of this escarpment.PDF Image | US Department of Energy Tribal Energy Program
