Text from PDF Page: 071

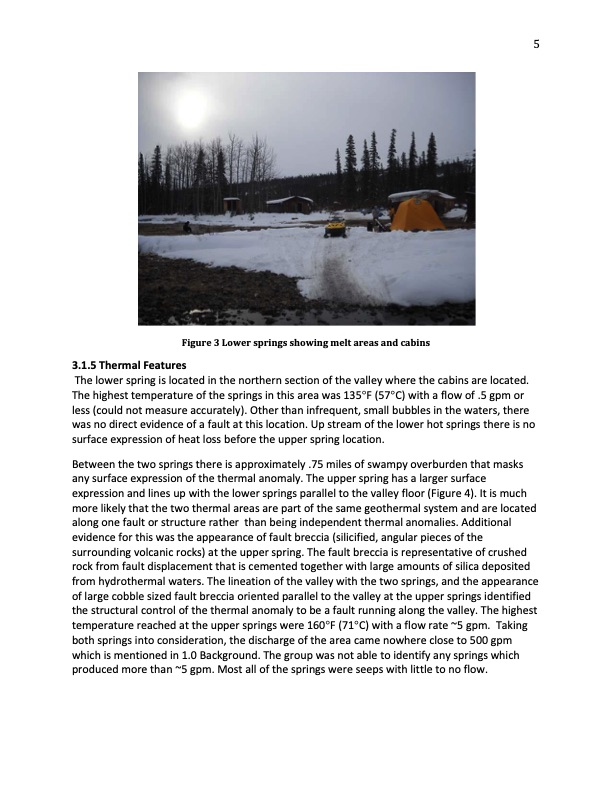

5 Figure 3 Lower springs showing melt areas and cabins 3.1.5 Thermal Features The lower spring is located in the northern section of the valley where the cabins are located. The highest temperature of the springs in this area was 135°F (57°C) with a flow of .5 gpm or less (could not measure accurately). Other than infrequent, small bubbles in the waters, there was no direct evidence of a fault at this location. Up stream of the lower hot springs there is no surface expression of heat loss before the upper spring location. Between the two springs there is approximately .75 miles of swampy overburden that masks any surface expression of the thermal anomaly. The upper spring has a larger surface expression and lines up with the lower springs parallel to the valley floor (Figure 4). It is much more likely that the two thermal areas are part of the same geothermal system and are located along one fault or structure rather than being independent thermal anomalies. Additional evidence for this was the appearance of fault breccia (silicified, angular pieces of the surrounding volcanic rocks) at the upper spring. The fault breccia is representative of crushed rock from fault displacement that is cemented together with large amounts of silica deposited from hydrothermal waters. The lineation of the valley with the two springs, and the appearance of large cobble sized fault breccia oriented parallel to the valley at the upper springs identified the structural control of the thermal anomaly to be a fault running along the valley. The highest temperature reached at the upper springs were 160°F (71°C) with a flow rate ~5 gpm. Taking both springs into consideration, the discharge of the area came nowhere close to 500 gpm which is mentioned in 1.0 Background. The group was not able to identify any springs which produced more than ~5 gpm. Most all of the springs were seeps with little to no flow.PDF Image | US Department of Energy Tribal Energy Program
